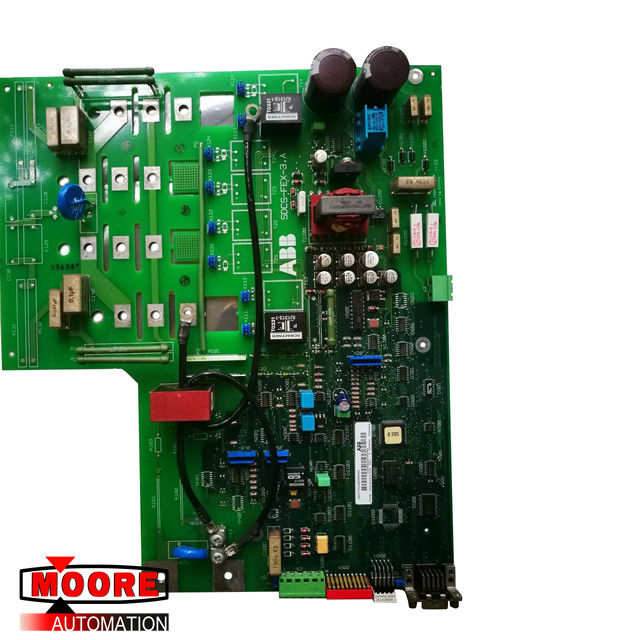

ABB SDCS-FEX-32A Module Card Board Plc Module

Product Details

AF 100 Advant Fieldbus 100 is the communications bus between the I/O stations and the Advant

Controllers. (FCI to CI52x).

DTM Device Type Manager is a standardized software for configuration, diagnostics, HART data

communication based on the FDT standard.

FCI The Fieldbus Communication Interface (FCI) device contains the interface to the fieldbus (e.g. AF 100),

ModuleBus interface and power regulators. The FCI module can manage 24 I/O devices (up to 12 directly

and to the others in 1 to 7 I/O clusters). Base cluster Consists of single or red. FCIs plus I/O modules

connected directly to the FCI.G3 compliant The module withstand more severe environmental conditions

according to ISA-S71.04.

HART Highway Addressable Remote Terminal is a digital communication protocol developed for applications

in industrial process metrology.I/O cluster An extension of the I/O Station’s ModuleBus connected to the FCI

by fiber optic connections. Up to 12 I/O devices per cluster.

I/O device A complete I/O device consists of one MTU and one I/O module.

I/O module Is an active, electronic and signal conditioning unit. Can be a part of an I/O device or a

S800L I/O module.
