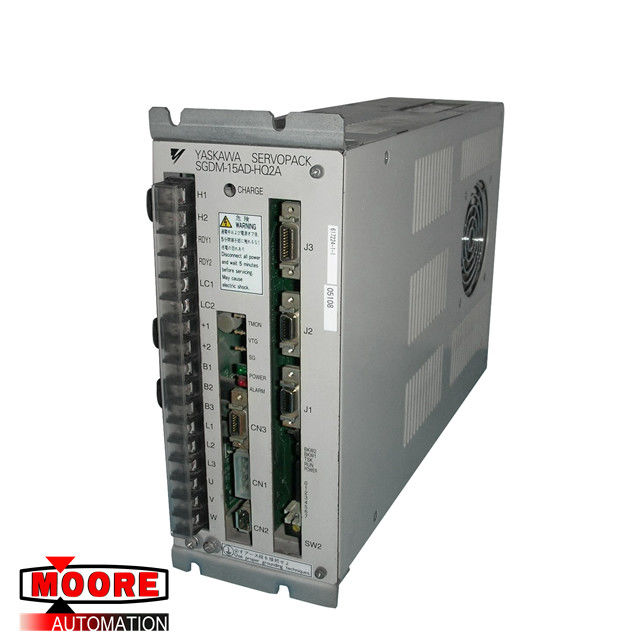

| Place of Origin | JAPAN |
| Brand Name | YASKAWA |
| Certification | CO.CQ |
| Model Number | SGDM-15AD-HQ2A |
| Brand/Manufacturer | YASKAWA/JAPAN |
| Part Number |
SGDM-15AD-HQ2A |
| Alternate Part Number |
SGDM-15AD-HQ2A |
| Description | SERVOPACK |
| Dimennsions | 12.3 cm x 27.2cm x 23.5cm |
| Weight | 0.78kg |
Product Details
Parameter L4-02, Speed Agree Detection Width, should be set to a small, nonzero value to avoid
unintended jumps in the disturbed waveforms.
When P1-04 and P1-05 are set to short slope times, set L4-02 to a value greater than 0.5 Hz to prevent
inconsistent traverse operation.
Step changes in frequency reference will result in unintended jumps in the disturbed waveforms. Disable
the Traverse function using the 80h (Disturbed WF Off) digital input to prevent damage to the motor or
connected equipment.
The Traverse waveform can be configured to be smaller than the input resolution of the A1000 slave drive's
frequency reference. Ensure that Master Frequency Reference × P1-02 is significantly larger than (Slave
Max Output Freq/2048)for proper control of the slave drive.
