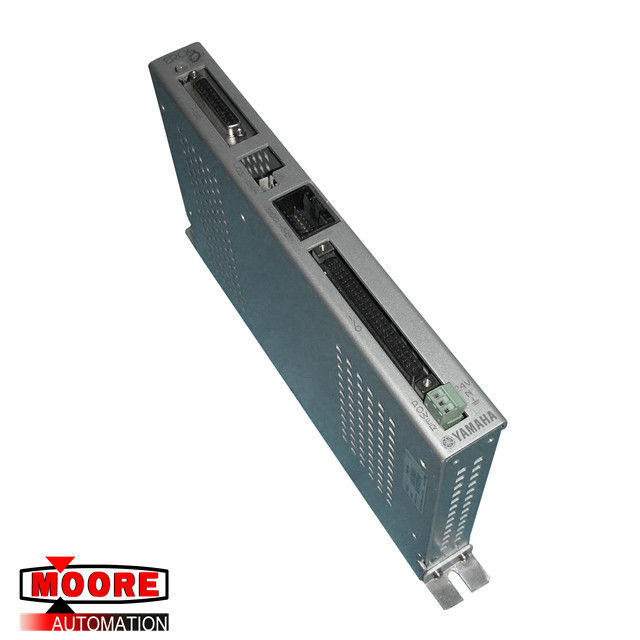

Brand/Manufacturer | YAMAHA/JAPAN |
Part Number |
ERCX |
Alternate Part Number |
ERCX |
Description | Robot Controller |
Dimennsions | 18.6 cm x 26.2cm x 19.6cm |
Weight | 0.88kg |
Product Details
The ERCX controller can be operated either through the TPB programming box or through a PC (personal
computer) equipped with an RS-232C terminal. When using the TPB, plug the TPB cable connector into
the TPB connector of the ERCX controller. (Refer to "4-1-1 Connecting the TPB to the ERCX controller".)
When using a PC, plug the RS-232C interface cable connector (25 pins) into the TPB connector of the
ERCX controller. (Refer to "11-2 Communication Cable Specifications".) To prevent equipment malfunction
due to noise, we strongly recommend that Class D (grounding resistance of 100 ohms or less) or higher
grounding be provided.
Robot I/O connector and signal table
Mating connector type No. : 0-174046-2 (AMP)
Mating connector contact type No. : 0-175180-2
ERCX’s connector type No. : 0-174053-2
About YAMAHA
Yamaha Motor Company Limited is a Japanese manufacturer of motorcycles, marine products such as
boats and outboard motors, and other motorized products. The company was established in 1955 upon
separation from Yamaha Corporation, and is headquartered in Iwata, Shizuoka, Japan. The company
conducts development, production and marketing operations through 109 consolidated subsidiaries as
of 2012.
