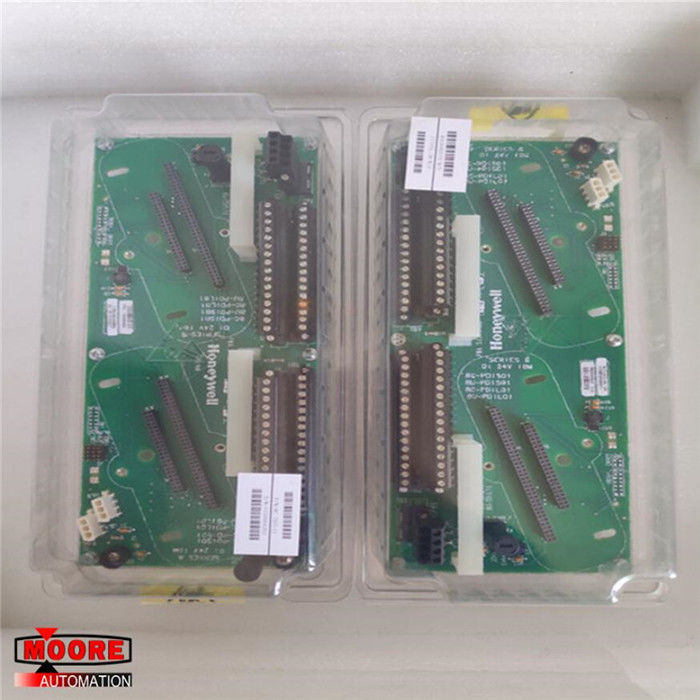

Honeywell 8C-TDIL11 51306858-175 Module Backplane

Product Specificaion

Product Details

Commands set points , offset and range of the analogue output can get in conflict if the front panel is enabled. These commands are

marked with & in the following listings.

This depends of the position of Function Switch 1. In position SETPOINTS offset and range of the analogue output can be programmed.

Values of the digital switches are for the set point adjustment.

In position LIMITS set points can be programmed and the values of the digital switches are used for the analogue output adjustment.

Function Switch 1 should have been positioned to SETPOINTS before the front panel is disabled (bit 0 = 1 in the mode register). Then programming of setpoint adjustments is independent of analogue output adjustment.
