6GK1907-0DB10-6AA3 6GK1 907-0DB10-6AA3 Siemens Simatic Net Power M12 PLUG PRO

Product Details

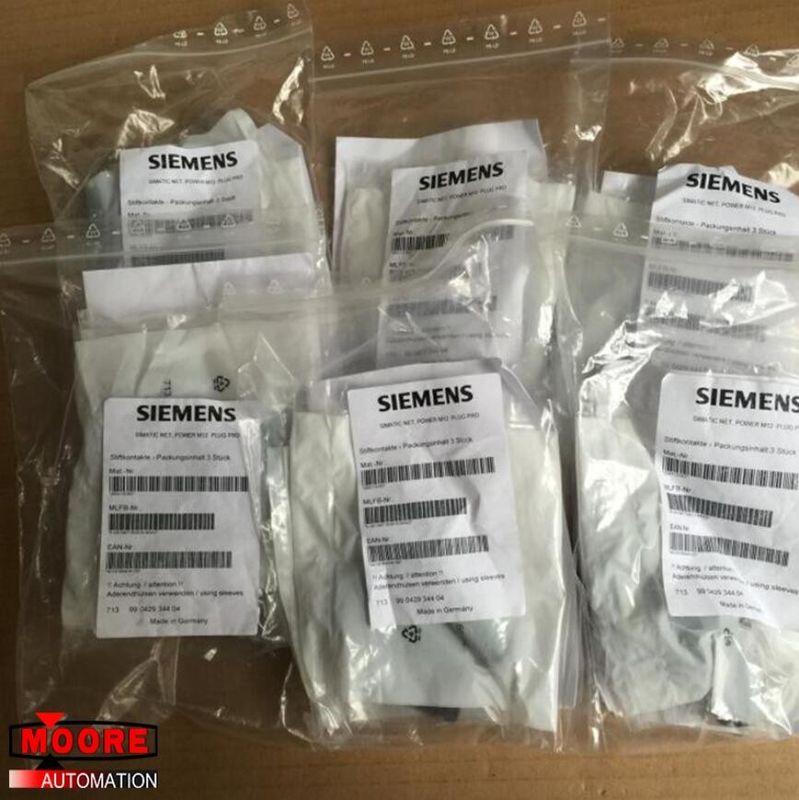

M12 power connector, 4-pole, A-coded IE Power M12 Cable Connector PRO; plug-in connector for connection to power supply PS791-1PRO for 24 V DC power supply with installation instructions, 4-pole, A-coded, 3 units.

Interfaces:

Number of electrical connections: for network components or terminal equipment 1

Type of electrical connection:

for PROFIBUS cables Integrated screw contacts for 2-core power cables

for network components or terminal equipment M12 connector (male insert, A-coded, 4-pin)

Type of electrical connection / FastConnect No

Mechanical data:

Material / of the enclosure plastic

Locking mechanism design Screw

Ambient conditions:

Ambient temperature:

during operation -40 ... +70 °C

during storage -40 ... +80 °C

during transport -40 ... +80 °C

Chemical resistance: to water resistant

Protection class IP IP65/67

Product features, product functions, product components / general

Product feature: silicon-free Yes

Product component: strain relief Yes

Standards, specifications, approvals

Certificate of suitability:

RoHS conformity Yes

UL approval No

Railway application in accordance with EN 50155 No
