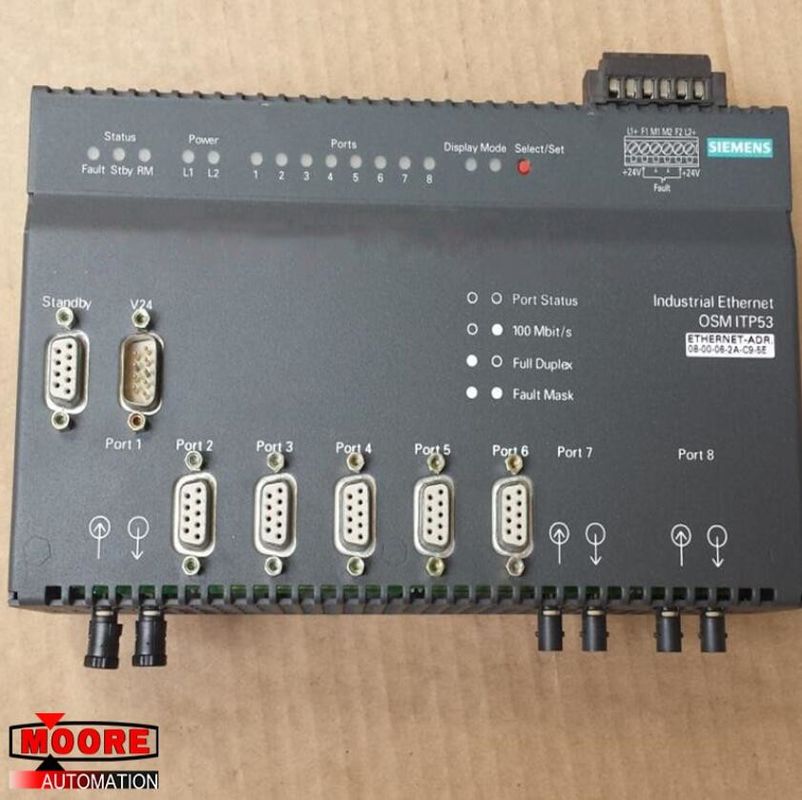

6GK1105-2AD00 Siemens Optical Switch Module 6GK1 105-2AD00 OSM ITP53
  • 6GK1105-2AD00 Siemens Optical Switch Module 6GK1 105-2AD00 OSM ITP53

6GK1105-2AD00 Siemens Optical Switch Module 6GK1 105-2AD00 OSM ITP53

Place of Origin GERMANY
Brand Name Siemens
Certification CO.CQ
Model Number 6GK1105-2AD00
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
6GK1105-2AD00
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Siemens
Weight:
4lbs
High Light:

siemens plc

,

siemens control module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description
Brand/Manufacturer Siemens/GERMANY
Part Number 6GK1105-2AD00
Alternate Part Number 6GK1105-2AD00
Description Optical Switch Module
Dimennsions WHD 217* 161*69mm
Weight 1.4kg



Product Details

OSM ITP53 Optical Switch Module with two LWL ports 100 Mbit/s, six ITP ports 10/100 Mbit/s and eight digital Inputs; redundant DC 24V Infeed Signaling contact integrated redundancy manager, with network management max. Ambient temperature +55 ° C.



Signal inputs/outputs:

Operating voltage / of the signaling contacts -at DC / Rated value 24 V

Operating current / of the signaling contacts -at DC / maximum 0.1 A

Number of digital inputs 8

Number of electrical connections / for digital input signals 2

Type of electrical connection / for digital input signals 4-pole plug-in terminal block

Signal voltage:

for signal <0> / at DC -30 ... +3 V-Rated value 24 V

for signal <1> / at DC 13 ... 30 V-Rated value 24 V

Input current / at digital input:

with signal <0> / maximum 0.008 mA

for signal <1> 0.008 A



Supply voltage, current consumption, power loss:

Type of voltage / of the supply voltage DC

Supply voltage : external 24 V; external / minimum 18 V; external / maximum 32 V

Product component / fusing at power supply input Yes

Fuse protection type / at input for supply voltage T 1.6 A / 250 V

Consumed current / maximum 1 A

Power loss [W]: at DC / at 24 V 20 W



Product functions / management, configuration, engineering

Product function:

CLI Yes

web-based management Yes

MIB support Yes

TRAPs via email Yes

RMON Yes

Port mirroring Yes

multiport mirroring No

Product function / switch-managed Yes

Protocol / is supported:

Telnet Yes

HTTP Yes

TFTP Yes

FTP Yes

BOOTP Yes

SNMP v1 Yes



Standards, specifications, approvals / marine classification:

Marine classification association:

American Bureau of Shipping Europe Ltd. (ABS) Yes

Bureau Veritas (BV) Yes

Det Norske Veritas (DNV) Yes

Germanische Lloyd (GL) Yes

Lloyds Register of Shipping (LRS) Yes

Nippon Kaiji Kyokai (NK) Yes

Polski Rejestr Statkow (PRS) Yes

6GK1105-2AD00 Siemens Optical Switch Module 6GK1 105-2AD00 OSM ITP53 0
