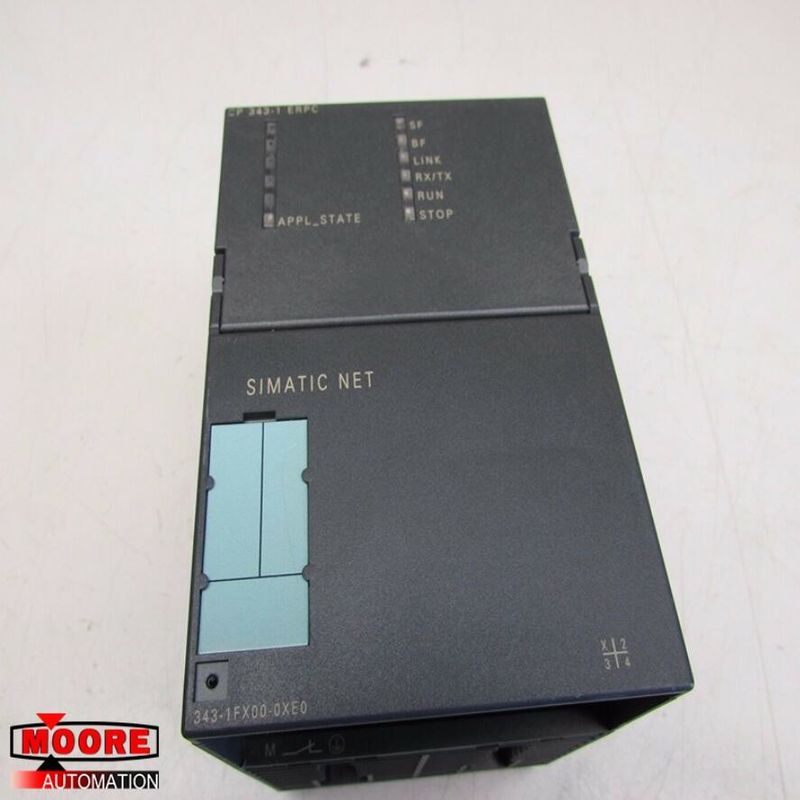

6GK7 343-1FX00-0XE0 Siemens Communication Processor 6GK7343-1FX00-0XE0 CP343-1

Product Details

Communications processor CP 343-1 ERPC for connection of SIMATIC S7-300 CPU to Industrial Ethernet and to various databases Functions: TCP/UDP, S7 comm., open communication with a. without RFC1006, Multicast, Web server, Clock time via SIMATIC method or NTP, access protection via IP access list SNMP, DHCP, C-plug, Gigabit interface 1x RJ45 (10/100/1000 MB).

Transfer rate:at the 1st interface 10 ... 1000 Mbit/s

Interfaces:

Number of interfaces / acc. to Industrial Ethernet 1

Number of electrical connections: at the 1st interface / acc. to Industrial Ethernet 1; for power supply 1

Type of electrical connection: at the 1st interface / acc. to Industrial Ethernet RJ45 port

Type of electrical connection:for power supply 2-pole plugable terminal block

design of the removable storage / C-PLUG Yes

Performance data / open communication:

Number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum 8

Amount of data:

as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte

as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte

as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum 2 Kibyte

Performance data / S7 communication:

Number of possible connections / for S7 communication: maximum 8; also 2 PG/OP connections and 1 diagnostics connection

Performance data / multi-protocol mode:

Number of active connections / with multi-protocol mode 32

Performance data / IT functions:

Number of possible connections:as server / by means of HTTP / maximum 4

Number of possible write cycles / of the flash memory cells 100000
