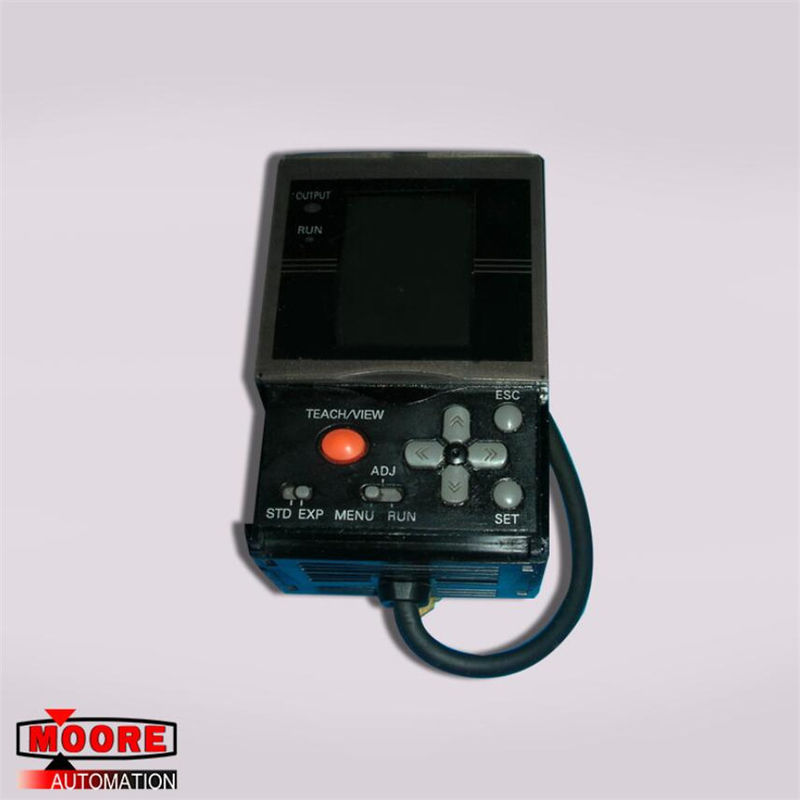

ZFV-A10 Omron Smart Sensor AMP UNIT 24VDC

ZFV-A10 OMRON SMART SENSOR AMP UNIT 24VDC

Product Details

Low-cost but advanced Smart Sensors combining benefits of optical and vision sensors.

Sensor integrated with light for easy installation;

Easy operation by selecting icons while watching LCD monitor;

Ultra-high speed response for fast-moving production lines.

Teaching area Rectangular, one area

Teaching area size:

Pattern (PTRN), Brightness (BRGT): Any rectangular area (256 x 256 max.);

Area (AREA), Width (WID), Position (POSI), Count (CNT), Characters (CHAR): Any rectangular area (full screen max.)

Sensing area: Full screen

Resolution: 468 x 432 (H x V) max.

Bank selection: Supported for 8 banks.

Response time: Pattern (PTRN), Brightness (BRGT): High-speed: 4 ms, Standard: 8 ms, High-precision: 12 ms (not using partial scan) Area (AREA), Width (WID), Position (POSI), Count (CNT), Characters (CHAR): 128 x 128: 15 ms max.

Other functions: Control output switching: ON for OK or ON for NG; ON delay/OFF delay, One-shot output, “ECO”mode

Output signals: (1) Control output (OUTPUT), (2) Enable output (ENABLE), (3) Error output (ERROR)

Input signals: (1) Simultaneous measurement input (TRIG) or Continuous measurement input (TRIG), Switched by using menu. (2) Bank selection inputs (BANK1 to BANK3). (3) Workpiece still teaching (TEACH) or Workpiece moving teaching (TEACH), Switched by using menu.

Power supply voltage: 20.4 to 26.4 VDC (including ripple)

Current consumption: 600 mA max. (with Sensor Head connected, power supply voltage 24VDC)

Dielectric strength: 1,000 VAC, 50/60 Hz for 1 min between leads and Amplifier Unit case

Noise immunity: 1 kV, Pulse rise: 5 ns, Pulse width: 50 ns, Burst duration: 15 ms, Cycle: 300 ms

Vibration resistance Destruction: 10 to 150 Hz, 0.1-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min

Shock resistance Destruction: 150 m/s2, three times each in six directions (up/down, left/right, forward/backward)
