| Place of Origin | JAPAN |
| Brand Name | NIDEC SHIMPO |
| Certification | CO.CQ |
| Model Number | ND-105DXR |

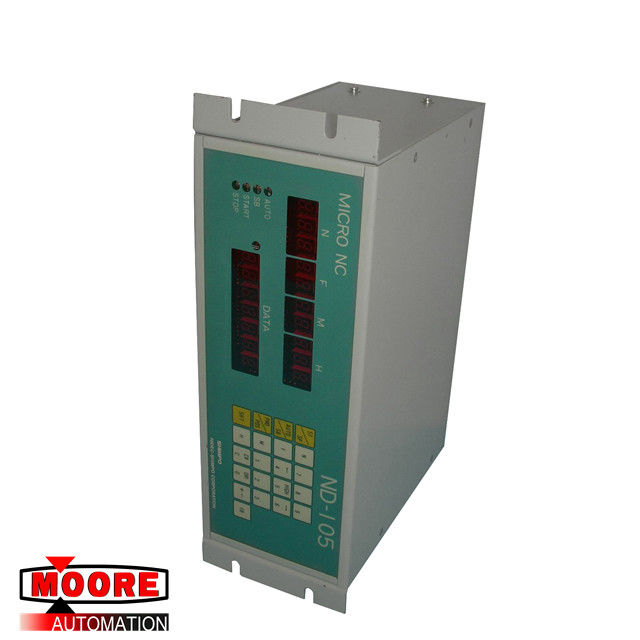

ND-105DXR NIDEC SHIMPO MICRO NC SERVO DRIVE
| Brand/Manufacturer | NIDEC SHIMPO /JAPAN |
| Part Number |
ND-105DXR |
| Alternate Part Number |
ND-105DXR |
| Description | MICRO NC SERVO DRIVE |
| Dimennsions | 13.4cm x 21.5cm x 28.0cm |
| Weight | 1.7kg |
Product Details
Features
1 Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction.
2 Bright LED display and simple controls aid in user operation.
3 Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
4 Flash controller dial permits accurate adjustments to the flash rate
5 LED technology greatly extends operation life and eliminates need to replace burned out bulbs.
6 Capable of being synchronized with input signal from sensor or controller
Specifications
Resolution Internal Mode 1 FPM. External Mode 0.1 FPM
Flash Duration 0.1 to 3.6° (0.14 μsec to 400 μsec)
Phase Shift 0 to 999 msec; 0 to 359°
Power Requirement 100 to 230 VAC
Synchronization Input Signal H level: 2.5 - 12V; L level: 0 - 0.4V
Input Signal Range FPM (RPM) 40 - 35,000
Input Signal Flash Delay FPM (RPM) 60-10,000
Power Supply Output DC12V 40mA for sensor input
Temperature Limits 32 to 104°F (0 to 40°C)
Humidity Limits 35 to 85% RH
