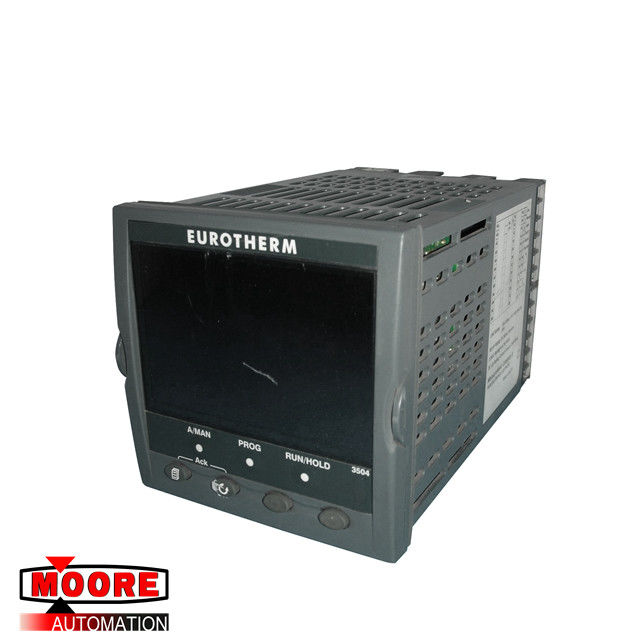

3504/CC/VH/1 EUROTHERM Programmer Temperature Controller
  • 3504/CC/VH/1 EUROTHERM Programmer Temperature Controller
  • 3504/CC/VH/1 EUROTHERM Programmer Temperature Controller

3504/CC/VH/1 EUROTHERM Programmer Temperature Controller

Place of Origin UK
Brand Name EUROTHERM
Certification CO.CQ
Model Number 3504/CC/VH/1
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
3504/CC/VH/1
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
EUROTHERM
Weight:
4lbs
High Light:

dcs automation

,

sst pb3 clx rll

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



3504/CC/VH/1 EUROTHERM Programmer Temperature Controller



Brand/Manufacturer

EUROTHERM /UK

Part Number

3504/CC/VH/1

Alternate Part Number

3504/CC/VH/1

Description Programmer Temperature Controller
Dimennsions 9.6 cm x 15.8cm x 9.6 cm
Weight 0.6kg



Product Details

The latest range of advanced process controllers from Eurotherm provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class.



The emphasis is on flexibility yet the 3500 controllers still maintain ease of use. A simple ‘Quick Start’ process is used to configure all the basic functions essential to controlling your process. This includes input sensor type, measurement range, control options and alarms making ‘Out the Box’ operation truly achievable. More advanced features are configured using a PC based graphical configuration tool enabling users to pick function blocks from a library then connect them together using soft wiring.



The large 5-digit display provides a clear and unambiguous indication of the process value. A four-line message centre provides custom or standard views of important information to the user while vertical and horizontal bargraphs provide at a glance visual indication of the process. OEM Security enables a user to protect their intellectual property by preventing unauthorised cloning of the configuration.



Two independent PID loops make the 3500 ideal for interactive processes such as those found in carburising furnaces, environmental chambers and autoclaves. The loops may also be ‘soft’ wired together in creative ways to create cascade, ratio or other intelligent control strategies.

2 PID loops

50 Programs

Precision PV input

Carbon potential

Maths/logic/timers

Custom user interface

Recipes

Digital communications:

  Modbus RTU Master and

  Slave

  Ethernet Modbus TCP

  Profibus DP network

  DeviceNet® network

OEM Security

Multi-language support (English, French,German, Spanish and Italian)



Specification

General

Environmental performance

Temperature limits: Operation: 0 to 50°C

Storage: –10 to 70°C

Humidity limits: Operation: 5 to 95% RH non condensing

Storage: 5 to 95% RH non condensing

Panel sealing: IP65, NEMA12

Vibration: 2g peak, 10 to 150Hz

Altitude: <2000 metres

Atmospheres: Not suitable for use in explosive or corrosiveatmosphere
