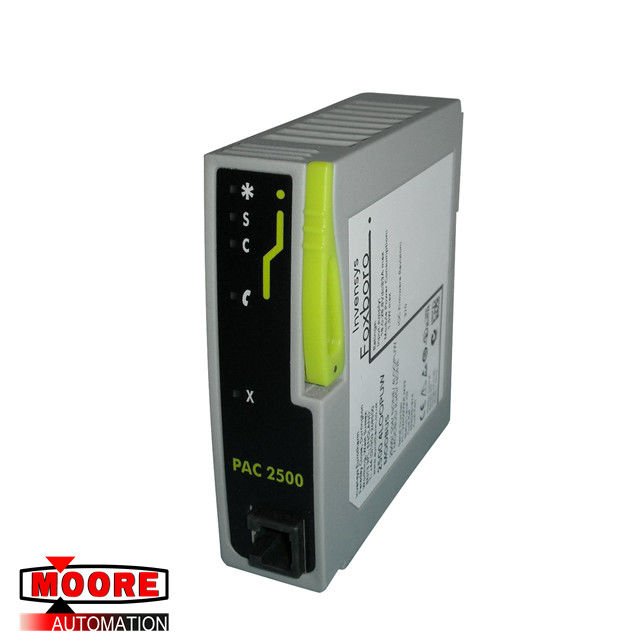

PAC2500 4LOOPUW FOXBORO Analog Input Module 18-28.8VCD 3A Max
  • PAC2500 4LOOPUW FOXBORO Analog Input Module 18-28.8VCD 3A Max
  • PAC2500 4LOOPUW FOXBORO Analog Input Module 18-28.8VCD 3A Max

PAC2500 4LOOPUW FOXBORO Analog Input Module 18-28.8VCD 3A Max

Place of Origin USA
Brand Name FOXBORO
Certification CO.CQ
Model Number PAC2500 4LOOPUW
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
PAC2500 4LOOPUW
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
FOXBORO
Weight:
4lbs
High Light:

sst pb3 clx rll

,

dcs modules

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



PAC2500 4LOOPUW FOXBORO Analog Input Module 18-28.8VCD 3A Max



Brand/Manufacturer

FOXBORO /USA

Part Number

PAC2500 4LOOPUW

Alternate Part Number

PAC2500 4LOOPUW

Description Analog Input Module
Dimennsions 14.5 cm x 14.8cm x 5.1 cm
Weight 0.54kg



Product Details

HIGH PERFORMANCE CONTROL

IN A VERSATILE, MODULAR SYSTEM

High performance, high accuracy, high functionality in an I/O system that provides cost effective access to a wide range of advanced functions including PID control with auto tuning and gain scheduling.

Designed to communicate with Modbus RTU, Profibus, DeviceNet, or Modbus TCP/IP masters, it can be used for signal conditioning, alarm monitoring, remote data acquisition, or devolved control for systems such as the Foxboro PAC Controllers and Visual Supervisor, PC-based SCADA, and PLCs.



Devolved Control

Eight PID blocks, provide an extensive range of control strategies. Each block offers one-shot auto tuning to optimize control performance without the need for specialist knowledge. Every PID block may be a Single PID, Cascade, Ratio or Override controller, each providing the choice of analog, time proportioned, or valve position output.



Mounting Flexibility

Six base sizes are available to take from 2 to 16 I/O modules each. Up to 16 bases may be daisy chained to provide acquisition and multi-loop control solutions with up to 128 I/O per base. DIN rail mounting allows the 2500 to be located where the control action is required, minimizing the cost of the cable used, as only the communications need be taken to the User Interface. The 2500 may also be mounted on part of the machine, saving the cost of centralized control cubicles.



Easy Configuration

A friendly Windows configurator package, ‘iTools,’ is used to set up the 2500. iTools parameterizes and commissions the I/O points, the Toolkit, and PID function blocks and interconnects the different variables, alarms, function blocks, and I/O. ‘Toolkit blocks’ provide local combinational logic and mathematical calculation.
