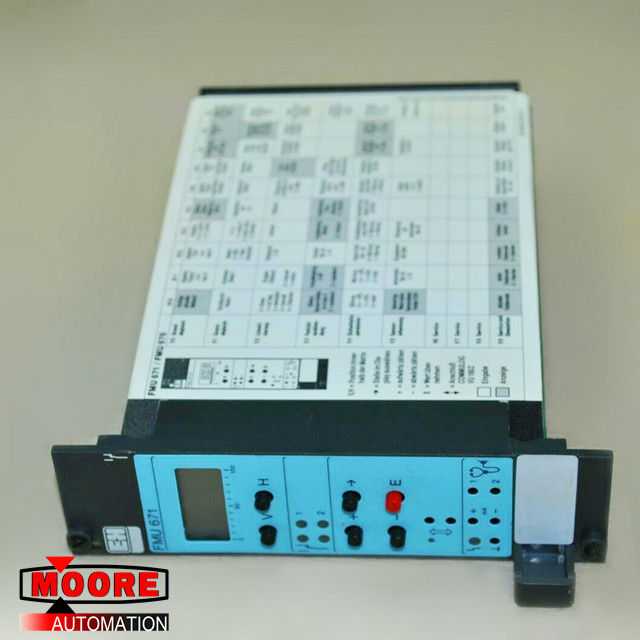

FMU671 Endress + Hauser Commutec Transmitters For Continuous
  • FMU671 Endress + Hauser Commutec Transmitters For Continuous

FMU671 Endress + Hauser Commutec Transmitters For Continuous

Place of Origin USA
Brand Name Endress+Hauser
Certification CO.CQ
Model Number FMU671
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
FMU671
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Endress+Hauser
Weight:
4lbs
High Light:

dcs automation

,

sst pb3 clx rll

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



FMU671 Endress+Hauser Commutec transmitters for continuous



Brand/Manufacturer Endress+Hauser/USA
Part Number

FMU671

Alternate Part Number

FMU671

Description Commutec transmitters for continuous
Dimennsions 5.5 cm x 18.5 cm x 13.4 cm
Weight 0.90kg



Product Details

Application

The Nivosonic FMU 671/676 is designed for continuous, non-contact level and volume measurement of both solids and liquids in vessels of any shape:

The Nivosonic FMU 671 can be calibrated directly at the front panel or by remote dialogue

The Nivosonic FMU 676 is operated by handheld terminal and for remote dialogue only



Features and Benefits

Simple commissioning and operation using addressable application parameters

Standardised current, voltage and relay outputs

Designed as a stand-alone unit and for dialogue with supervisory automation control systems (using Rackbus gateways)

Self-monitoring with status of measurement system continuously displayed

Standard installation cabling.



Technical Data

1. Plug Connection:

    Multipoint plug conforming to DIN 41612, Part 3, Type F (30-pole)

2. Power Supply:

    DC voltage 24 V (20 V ... 30 V) Tolerance: -4 V, + 6 V

    DC current: approx. 90 mA, max. 125 mA Integrated fine-wire fuses

3. Signal input:

    The following ultrasonic sensors can be connected to the Nivosonic FMU

    671 and 676:

    DU 40, 41, DU 42 S, DU 42 C,

    DU 43 S, DU 43 C, DU 44 Z, DU 46 Z,

    DU 73 s, DU 73 C

    Electrically isolated from other circuits

4.Signal Output:

   Current output: 4 ... 20 mA can be switched to 0 ... 20 mA, RL max. 500 Ω

   Voltage output: 2 ... 10 V can be switched to 0 ... 10 V RL min 2 kΩ

   Limit switch outputs: 2 independent relays each with one potential-free change-over contact, switching point and switching hysteresis: fully adjustable

   Fail-safe mode: minimum or maximum, selectable

   Alarm indication: one relay with potential-free change-over contact

   Relay switching capacity: AC: max. 2.5 A, max. 250 V (for CSA max. 125 V), max. 300 VA at cos ϕ 0,7, DC: max. 100 V, max. 90 W

   Display elements: 6 LEDs for function control
