| Place of Origin | GERMANY |
| Brand Name | KOLLMORGEN |
| Certification | CO.CQ |
| Model Number | 04S-M60/8-PB |

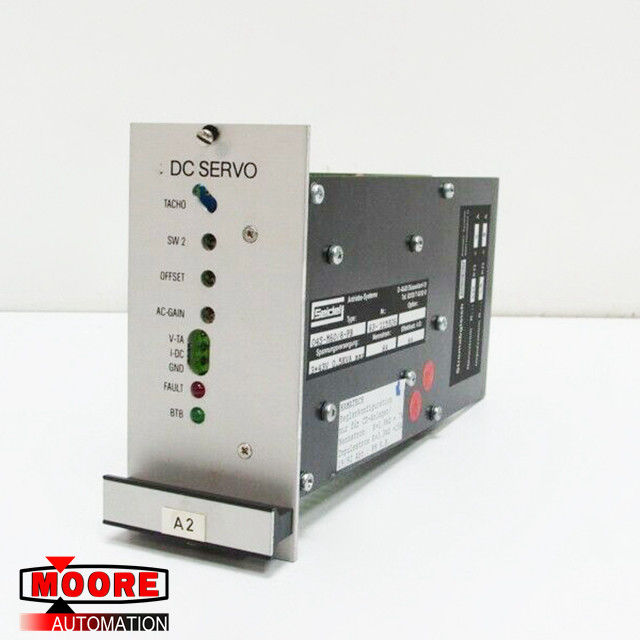

04S-M60/8-PB 04SM608PB KOLLMORGEN DC Servo Drive
| Brand/Manufacturer | KOLLMORGEN /GERMANY |
| Part Number |
04S-M60/8-PB |
| Alternate Part Number |
04S-M60/8-PB |
| Description | DC Servo Drive |
| Dimennsions | 4.5 cm x 19.9cm x 10.0 cm |
| Weight | 0.5kg |
Product Details
Options
-24V- supply for the electronics from an external 24V power supply
-IxR- speed control without a tachometer
--- front panel
Mains power supply
3-phase via isolating transformer
1-phase via isolating transformer
DC-supply (battery)
Function
The 04S transistor controller is equipped for driving DC motors in 4-quadrant operation with
tachometer feedback. The power section is implemented as a pulse-width modulated transistor
stage with V-MOS transistors.
Variants
04S-M60-8-PB : rated output current 8A, with “soft” ballast characteristic
Accessories
Isolating transformers : series 3TxxK-60 (see Chapter IV.1)
-FH24+7- : mating connector DIN41612-M24+7 with solder contacts
F back-panels : instrument connections are accessible from the back, via plug terminals for the control signals and studs/flat pin connectors for the power connections
R back-panels : instrument connections are accessible from the front,
plug terminals for the control signals and studs/flat pin connectors for the power connections 19”-rack modules : 19” base units in various widths, with F or R back-panels
Protective and monitoring functions
protected from short-circuit / earth short on the motor connection terminals
monitoring of the operating voltages
temperature monitoring of the output stage
fuse-protection of: ballast circuit, DC-link, auxiliary supply
overvoltage protection
