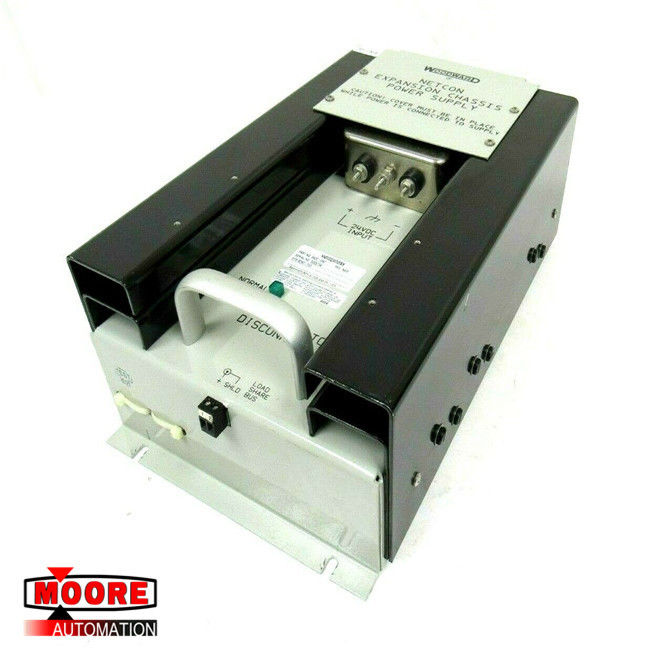

Expansion Chasis Power Supply 5437-092 5437092 Woodward Parts
  • Expansion Chasis Power Supply 5437-092 5437092 Woodward Parts

Expansion Chasis Power Supply 5437-092 5437092 Woodward Parts

Place of Origin USA
Brand Name Woodward
Certification CO.CQ
Model Number 5437-092
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
5437-092
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Woodward
Weight:
4lbs
High Light:

Woodward Power Supply

,

Woodward Power Supplies

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



5437-092 5437092 Woodward EXPANSION CHASIS POWER SUPPLY



⇒ Click here for good price 5437-092



Brand/Manufacturer Woodward/USA
Part Number

5437-092

Alternate Part Number 5437-092
Description EXPANSION CHASIS POWER SUPPLY
Dimennsions 10.4cm x 15.5cm x 8.0cm
Weight 0.69kg



Product Details

The crow-bar protects the intermediate DC-circuit. The activation of the crow-bar during normal operating conditions is not necessary and unusual. Nevertheless it could be that the crow-bar has been switched on. In that case it is justified due to a misdemeanor of other components. The components must be checked then.

To protect the Crow-Bar components (dI/dt choke, thyristors) against undesirably current flow and with it high temperatures the components are fitted with thermal switches with a threshold > 80°C and a thermal protection relay (F40) which isolates the primary circuit from the supervision circuit. The relay is switched into the “Ringline shut down” circuit which switched off the system immediately in case of failure. The fault “M24: Ringline shut down” will be displayed and recorded in the Customer Tool.

The current flow through the system and therewith through the components will be disconnected immediately. It is impossible to reset the Relay (F40) remotely. The service must reset the relay manually after they have checked the components. If necessary change the components. The dI/dt choke and thyristors are designed for a maximum temperature of 125°C. To insure a safe operating of the components the threshold of the thermal switches are selected to 80°C.



About Woodward

Woodward is an independent designer, manufacturer and service provider of energy control and optimization solutions for aerospace and industrial markets. For 150 years, Woodward has focused its resources and expertise on delivering proven systems that perform under incredible demands. Our customers have come to rely on us to help them address and solve the challenges associated with global efficiency initiatives – from reducing emissions, to increasing energy efficiency, to helping them introduce alternative energy sources.
