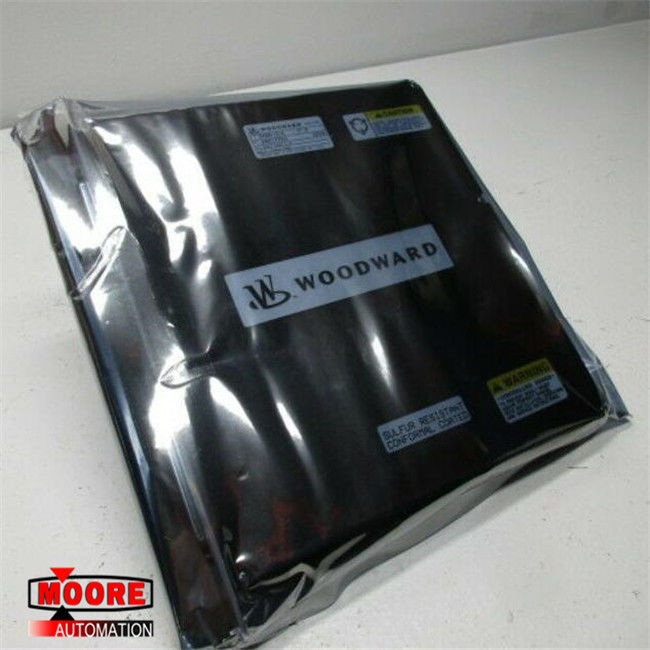

5466-316 5466316 Rev K Module Woodward Parts
  • 5466-316 5466316 Rev K Module Woodward Parts

5466-316 5466316 Rev K Module Woodward Parts

Place of Origin USA
Brand Name Woodward
Certification CO.CQ
Model Number 5466-316
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
5466-316
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Woodward
Weight:
4lbs
High Light:

Rev K Module

,

Woodward Rev K Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



5466-316 5466316 Woodward REV.K MODULE



⇒ Click here for good price 5466-316



Brand/Manufacturer Woodward/USA
Part Number

5466-316

Alternate Part Number 5466-316
Description REV.K MODULE
Dimennsions 10.4cm x 5.2cm x 8.0cm
Weight 0.52kg



Product Details

Technical Data

Radio-interference suppression: VDE 0875 part 11, EN 55011 class B

Static discharge ESD, IEC 801-2: 8 kV contact discharge 15 kV air discharge

Electromagnetic fields, IEC 801-3: 10 V/m

Burst IEC 801-4: 4 kV input; 2 kV output, capacitive coupling

Surge IEC 801-5, EN 6100-4-5: 4 kV asymmetric, 4 kV symmetric

Safety rules VDE 0805/11.93, EN 60950, IEC 950

Test voltage:

3 kV AC : all safety relevant components;

1.5 kV DC: finished product between primary and econdary side

1.5 kV DC: finished product between primary and protection earth

0.5 kV DC: finished product between secondary and protection earth

protection class: class I

Degree of protection: IP20

Discharge current: <0.75 mA (47 - 63 Hz mains frequency and Umains, max )



Operating data

Temperature range during operation: 0 to +70°C, with free convection; during storage: -25 to +85°C

Derating of output: 2.5 %/K above +60°C (see Fig.3.5)



Input Circuit (single-phase)

Input voltage : 1 x 230 V AC ±15% at Usec = 24 V DC/18 A, +15%/-10% at Usec = 27.5 V DC/18 A

Input rated current: 4.4 A (24 V type)/2.4 A (12 V type)

Output Circuit

Output voltage: 27 V DC ±1% / 13,5 V DC ±1% (preset by manufacturer)

Setting range: 24 - 27.5 V (24 V type)/12 - 14 V (12 V type)

Max. output current: 18 A

Limitation of current: typically 20 A, starting point at 18.5 ... 21.5 A limit point at 20.0 ... 26.0 A

Output: 480 W

Residual ripple: <100 mV

Efficiency: 90%

Max. power loss: 53 W

Load capacity of output terminals: ≤20 A at TU = 0°C up to +45°C; 0.2 A- reduction/°C from +45°C to ≤17 A at TU = +60°C
