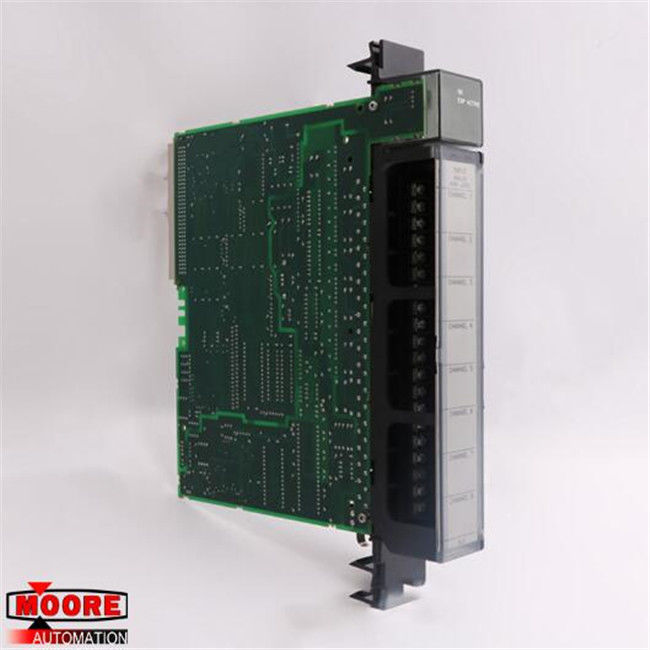

IC697ALG230 GE Analog Input Module

IC697ALG230 GE Analog Input Module

⇒ Click here for good price IC697ALG230

Product Details

Analog 90-70 Input IC697ALG230, Voltage/Current, 8 Channels. GE IC697ALG230 has 8 differential inputs individually configurable for voltage or current inputs. The 90-70 IC697ALG230 has individual user scaling on each input channel on base converter module; scaling on a per module basis for expander modules.

Features

Complete Analog subsystem includes Base Converter and Expander modules

Base Converter module has eight differential inputs individually configurable for voltage or current

Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale

Accepts 4 to 20 milliamp current loop signals

Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules

Fast update rate for Base Converter module

Voltage and current Expander modules, each with 16 inputs, provides for additional inputs at a lower cost per point

Complete subsystem can accept up to 120 inputs

No jumpers or DIP switches to configure

Easy configuration with MS-DOSor Windows programming software configuration function.
