Product  Details

The IS2020RKPSG2A is a component that fits into the Mark VI system. This is a VME Rack Power Supply. The MKVI was the fifth Speedtronic gas/steam turbine management system released by General Electric. Each individual PCB in the Mark VI control module has software limit checking and high/low hardware limit checking. They also have comprehensive diagnostics that will check for and alarm abnormal hardware conditions. Diagnostic alarms display using the yellow status LED located on each card front.

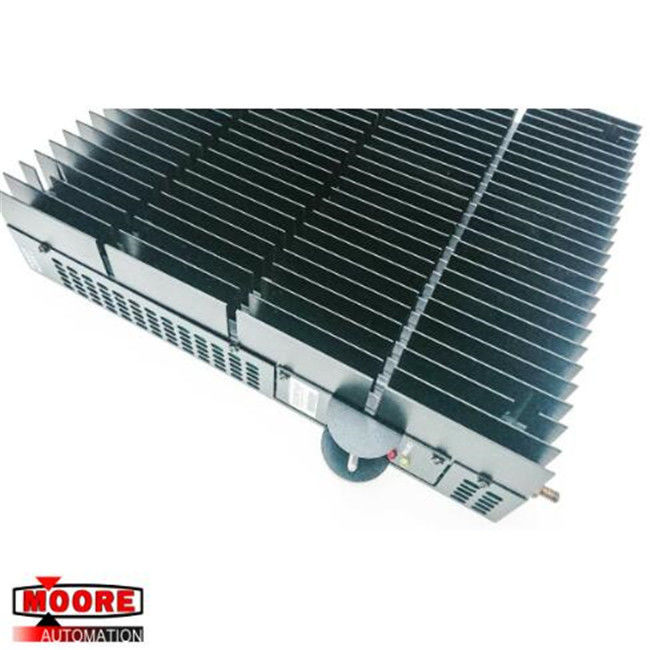

The IS2020RKPSG2A is designed as a complete and separate module. It has a front faceplate that includes three LEDs (yellow, red, green,) and a switch component. The faceplate is labeled “Power supply,” and also has a location to record the revision number, GE catalog number, and serial number for easy reference. The side of the module is designed with many metal fins. This side of the module functions as a large heat sink component. The top edge of the module has two connectors (PSA and PSB) and the bottom has four additional connectors (PS125 or PS24, PS335, PS28, and PSSTAT.)

It is important to note the VME rack power supply has seven major variations. The IS2020RKPSG2A has an input voltage of 125 V dc and an output rating of 400 W. Outputs (mentioned above) includes five +28V outputs, one remote +28V output, a PS335 output, and a status ID output.

Fault conditions that happen within the IS2020RKPSG2A module will require reset action, will transiently shut down one of the outputs, or will require the replacement of the entire supply. These are the only types of faults that occur.
