| Place of Origin | USA |
| Brand Name | GE |
| Certification | CO.CQ |
| Model Number | IC660BRD025B |

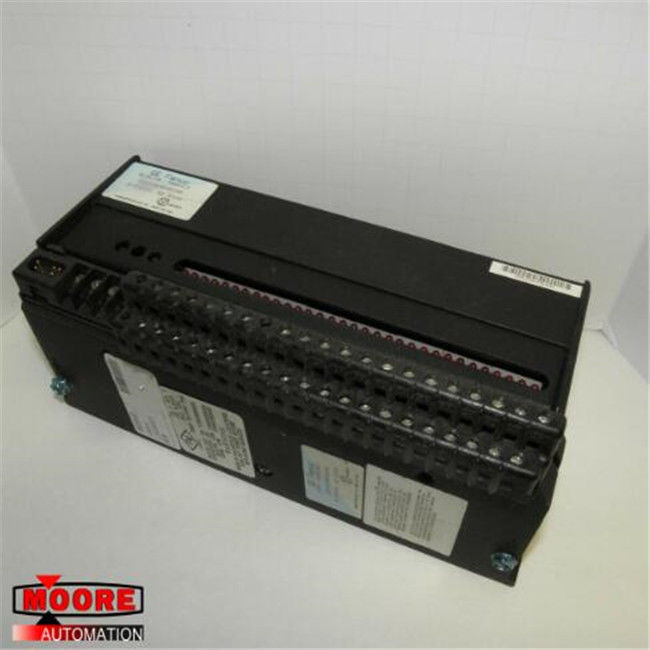

IC660BRD025B GE Electronic Module
⇒ Click here for good price IC660BRD025B
| Brand/Manufacturer | GE /USA |
| Part Number |
IC660BRD025B |
| Alternate Part Number | IC660BRD025B |
| Description | MOTOR SERVO |
| Dimennsions |
3.6x13x13.5cm |
| Weight | 0.32kg |
Contact Us
Email: miya@mvme.cn (KLICK)
QQ: 2851195450
Tel: 86-18020776792(KLICK)
Skype:miyazheng520(KLICK)
Product Details
The IC660BBD025 is a 5/12/24 VDC 32-Circuit Sink I/O Block. This block is an intelligent, configurable module that interfaces the controller to devices that send or receive binary signals. IC660BBD025 works with both 2-wire and 3-wire proximity switches, as well as other input devices. It is important to note that if the user plans to provide current to field output devices rather than receive current, a Source Block IC660BBD024 is recommended.
Source and Sink block versions each operate with direct current (12 to 24 volts). IC660BBD025 is also +5 volt TTL (transistor-transistor logic) compatible. The block’s 32 circuits can be configured as input, output, or output with feedback. In output configurations, block architecture protects driver circuits against short circuits caused by wiring errors. Configurable features of the IC660BBD025 include Output Pulse Test capability, Input Filter Time, CPU Redundancy type, Output Hold behavior, and its readiness for use as a Bus Switching Module control.
Block terminals 5 through 46 are for connecting field devices. The user should wire the block power disconnects so that block power and input power can be removed at the same time. Simultaneous power removal ensures that the block will not power up unexpectedly when multiple inputs are activated.
IC660BBD025 ships with block diagnostics that monitor output and check actual switch state against expected or commanded switch state. The block handles a steady-state load of 0.5 Amps when operating normally. Block behavior and circuits are configured using a handheld monitor. The monitor can also be used with LEDs on the chassis of the block itself to check operating status at a glance.
When installing the block, it is crucial to use a protective case and choose a place with no airborne contaminants. Adequate cooling and air flow are essential. Ground screws must connect to a reliable grounding system. To properly disconnect block power, circuit power must be disconnected.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
