| Place of Origin | USA |
| Brand Name | GE |
| Certification | CO.CQ |
| Model Number | DS200UPSAG1AFD |
DS200UPSAG1AFD DS200UPSAG1A GE Power Supply Board
⇒ Click here for good price DS200UPSAG1AFD
| Brand/Manufacturer | GE/USA |
| Part Number |
DS200UPSAG1AFD |
| Alternate Part Number | DS200UPSAG1AFD |
| Description | MOTOR SERVO |
| Dimennsions |
28x12.7x4.5cm |
| Weight | 0.78 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

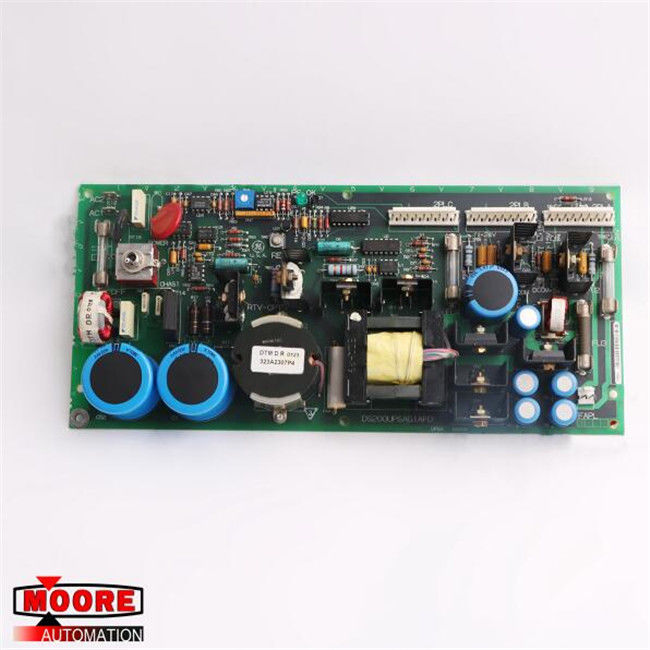

The GE EX2000 Power Supply Board DS200UPSAG1AFD features one reset button, 3 fuses, and one LED light. The GE EX2000 Power Supply Board DS200UPSAG1AFD also is populated with 3 9-pin connectors, several capacitors, and test points. The GE EX2000 Power Supply Board DS200UPSAG1AFD also is populated with 3 heat sinks. The heat sinks draw heat from heat producing components on the board. The heat sinks protrude from the board and require space for the heat to dissipate from them. For that reason, the board must have clearance all around it and cannot be sandwiched between other boards. That is, the board must have free flowing air around it. Also, when you remove the board from the drive, care must be taken to prevent the heat sinks from hitting other components in the drive. Also, the heat sinks may possibly end up broken off the board if they strike a component or structure in the drive.
There are several test points on the board. The ID of 1 is AC1 and the ID of another is AC2. Other test point IDs are DCOM and CCOM. A qualified servicer can test the board using a tester device to test the various circuits. If the servicer can find the cause of a problem, you can possibly send the board to a service center for repair.
Press the reset button to restart the board without restarting the board. Often, an error in the board can be resolved simply and quickly with the reset button.
