1771-0ZL AB AB PLC-5 Digital Dry-Reed Relay Contact Output Module

1771-0ZL AB PLC-5 Digital Dry-Reed Relay Contact Output Module

⇒ Click here for good price 1771-0ZL

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

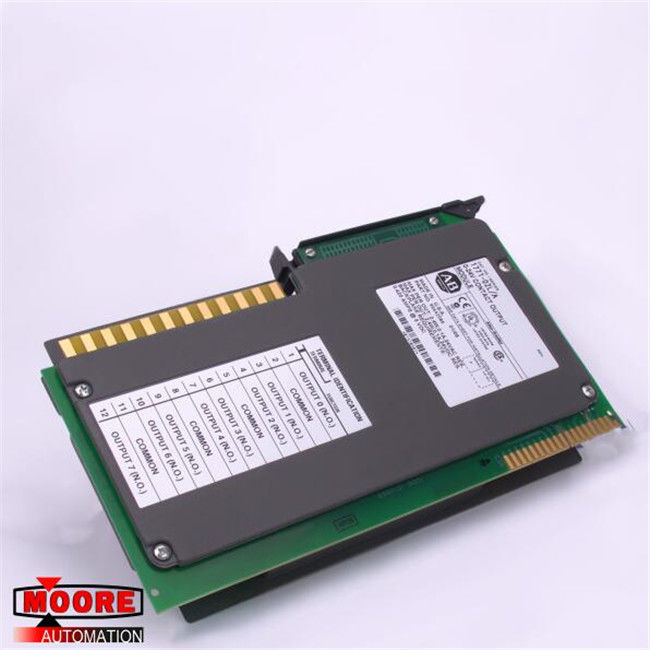

The AB 1771-OZL is a PLC-5 digital dry-reed relay contact output module. It comes with an 8 Form A or N.O. (normally open) output points that are grouped into 4 sets of 2 outputs, with each group having its own common. These outputs are electrically-isolated from the module’s logic circuitry. Eight status indicators on the front plate of the module are available representing the control status of the output relays. Once a relay has been energized, its corresponding indicator will be lit up. It uses a 1771-WD wiring arm and can be installed in a 1771 Series A or B I/O chassis. The entire 1771-OZL module measures 4.38 x 1.5 x 11.81 inches.

The voltage ratings of this module are 0-24V AC and 0-24V DC and maximum current rating is 100 mA per output. Note that the peaks, surges, and spikes must fall within the range of the power rating. The 1771-OZL has power ratings of 2.4 W resistive each per output for both DC and suppressed AC. This module also has minimum contact loads of 10 mA at 24V each for both AC and DC. The isolation voltage is 1000V for open contacts and 1500V for coil-to-contacts and its backplane current is a maximum of 420 mA.
