| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-DB |

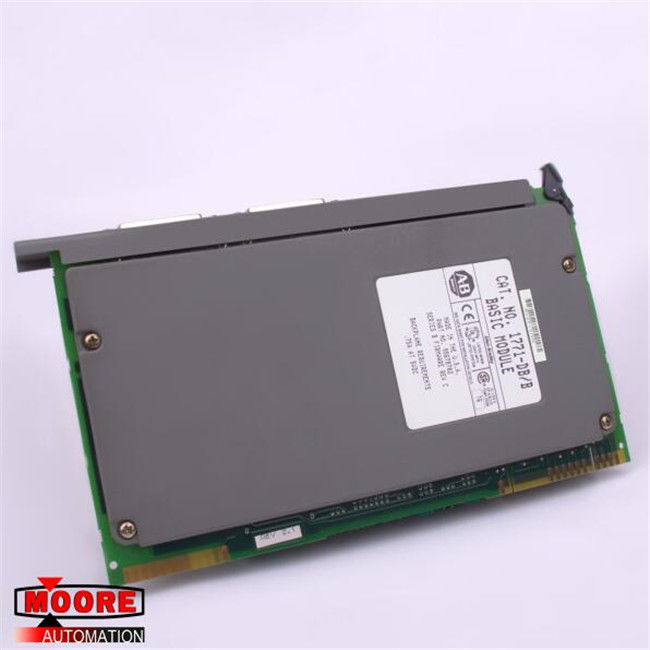

1771-DB 1771DB AB AB Basic Module
⇒ Click here for good price 1771-DB
| Brand/Manufacturer | AB/USA |
| Part Number |
1771-DB |
| Alternate Part Number | 1771-DB |
| Description | MOTOR SERVO |
| Dimennsions |
5.1x27.9x17.8cm |
| Weight | 0.3kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-DB is a PLC 5 Basic Module. It provides an easy interface between a PLC-5 processor, 1771 backplane, and RS-232, RS-422, or RS-485 devices. It can also communicate with a remote SLC processor or remote device across a DH-485 network via a DH-485 port. It provides fast communication independent of the processors. The 1771-DB allows for data analysis and manipulation gathered from the processors and unattended report generation. It saves processor memory by solving complex math or application-specific problems. The 1771-DB has applications in various remote communication devices such as computers, printers, modems, and other third-party devices.
The 1771-DB module has an isolation voltage of 500V DC from port-to-port and port-to-backplane. It has a 32 KB battery-backed RAM and 24 KB available user memory. It has a communication rate ranging from 300 – 19.2 Kbps. It has a backplane current load of 0.75A with a DH-485 interface connected to a DH-485 port and one of 0.65A without a device connected to the DH-485 port. The 1771-DB has a time-of-day clock with a 10ms resolution and a maximum power dissipation of 4W. For installation, it takes one slot in the I/O chassis and supports BASIC and C programming languages. It requires 2 ports for RS-232, RS-422, or RS-485 connections and 1 port for DH-485 connections.
The 1771-DB module supports BASIC statements and commands and its additional 128 calls. It has a Block-transfer capability which allows complete data transfer between the processor’s data table and the module’s memory, thus minimizing user programming. The 1771-DB has 8 defined and 2 user-defined indicators for troubleshooting and indicators.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
