1784-CF128 1784CF128 AB AB CompactFlash Card - 128MB

1784-CF128 1784CF128 AB AB CompactFlash Card - 128MB

⇒ Click here for good price 1784-CF128

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

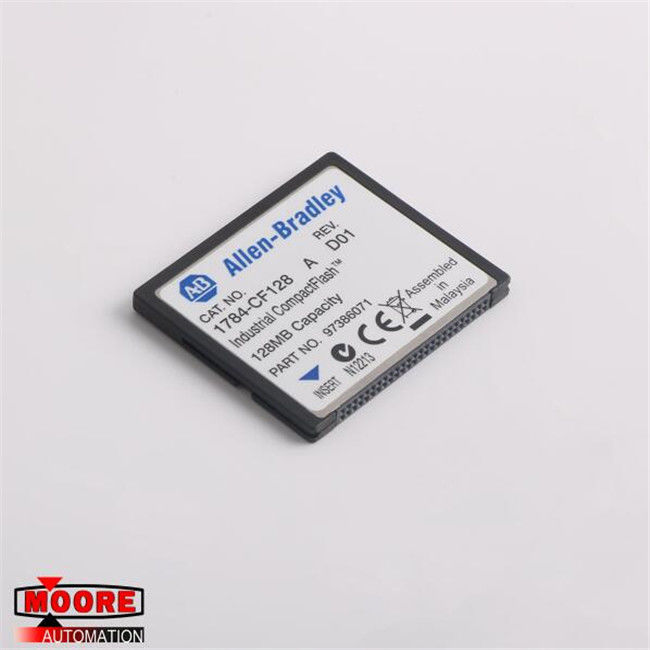

The AB 1784-CF128 is a CompactFlash card. It comes with a 128 MB memory. You can use this to add data storage or non-volatile memory to CompactLogix controllers, where you can save user programs and tag data. No formatting is required to use this CompactFlash card for the storage of controller information. It can be installed in a socket on the controller and the entire 1784-CF128 CompactFlash card weighs around 14.2 g or 0.5 oz.

It has an operating temperature of -25-70 ËšC and a non-operating temperature of -40-85 ËšC. It also has a non-condensing relative humidity of 5-95%, with ESD immunities of 6 kV contact discharges and 8 kV air discharges. Radiated RF immunities of the 1784-CF128 CompactFlash card are 10 V/m with 1 kHz sine-wave 80% AM from 80-2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM at 1890 MHz, and 3 V/m with 1 kHz sine-wave 80% AM from 2000 to 2700 MHz. The 1784-CF128 also has an operating vibration of 2 g at 10-500 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.

Main Products

The advantage brands and series of our company are as follows:

【Honeywell】Module DCS / PLC
【Emerson / Delta V】Module

【ABB】Input Output Module
【AB】Module / Touch Screen

【GE/Fanuc】IC69 Series PLC
【Bently Nevada】3500 system
【Yokogawa】Pressure Transmitter
【Yaskawa】Servo Drive / Servo Motor

If you need detailed technical information, welcome to contact us.
