1336F-BRF100-AA-EN 1336FBRF100AAEN AB AB 1336 PLUS II AC Drive

1336F-BRF100-AA-EN 1336FBRF100AAEN AB AB 1336 PLUS II AC Drive

⇒ Click here for good price 1336F-BRF100-AA-EN

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

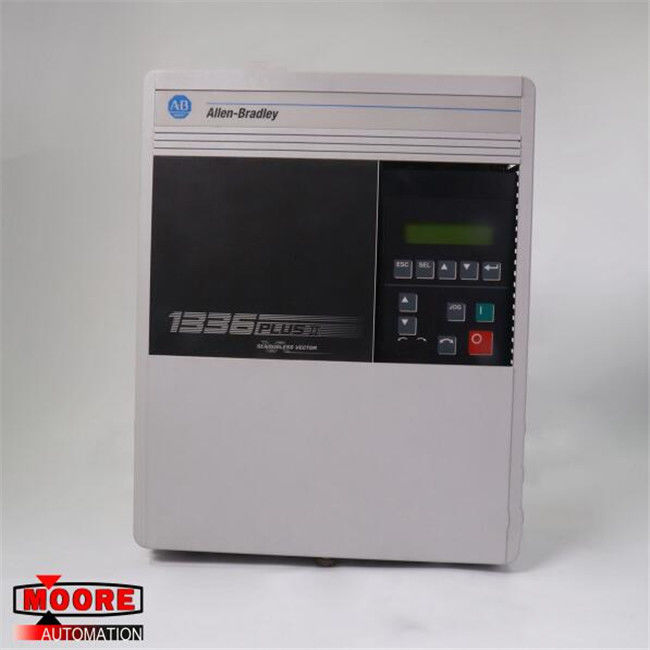

The 1336F-BRF100-AA-EN is an AB product of the 1336 PLUS II series. It is an Adjustable Frequency AC Drive, designed to operate on three-phase supply systems with symmetrical line voltages. This drive is equipped with a Metal Oxide Varistor that provides the voltage surge protection. The enclosure type for this product is IP20 (NEMA 1). It is microprocessor based drive with a voltage ranging from 380 to 480 Volts AC or 513 to 620 Volts DC. The HorsePower rating for 1336F-BRF100-AA-EN is set at 10Hp and its language specifications are confined to English.

This digitally programmable drive is capable enough to make precise adjustments. Additionally, it is programmed to provide real-time diagnostics that includes the Fault as well as the Custom Status reports. This feature of the 1336F-BRF100-AA-EN aids the quick and informed decision making. The 1336 PLUS II series product, 1336F-BRF100-AA-EN, has been devised for maximum control and exceptional industrial capability. It has a heat sink through the back type of design that helps the device to maintain the required temperatures. The small size and the planar construction increase the reliability level. The 1336F-BRF100-AA-EN can cope with the high-speed inputs and the flexible inputs and outputs. Its functions such as the traverse function, auto restart and power up, auto-tuning, step logic, and more, are provided by this drive along with various protective features. The overcurrent and overvoltage stall, and the six drive alarms and fault reset inputs are some of the protective features that this AB product provides to the users.

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
