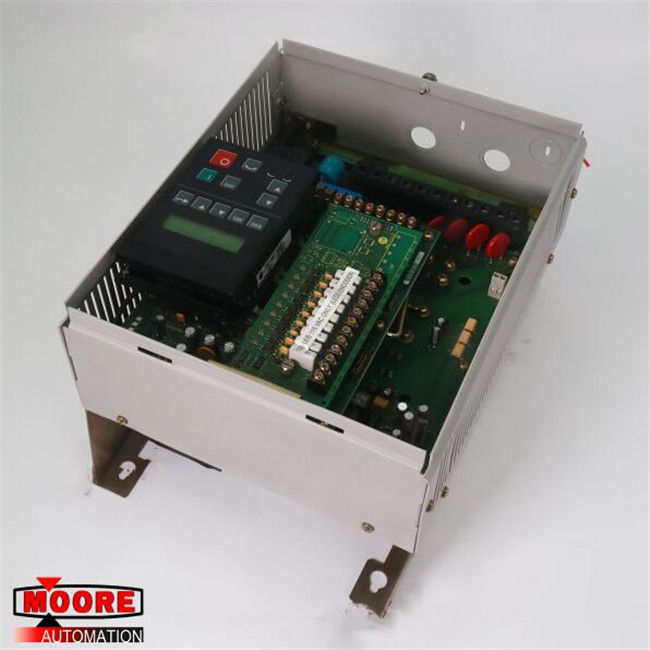

1336F-BRF75-AA-EN 1336FBRF75AAEN AB AB 1336 PLUS II AC Drive

1336F-BRF75-AA-EN 1336FBRF75AAEN AB AB 1336 PLUS II AC Drive

⇒ Click here for good price 1336F-BRF75-AA-EN

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The 1336F-BRF75-AA-EN-HASP-L4 drive is an adjustable frequency drive designed and manufactured by AB. The drive has a voltage rating of 480 Volts AC. AB designed the 1336F-BRF75-AA-EN-HASP-L4 to be used with motors that have a Horsepower rating not exceeding 5.5 Horsepower. The drive has both standard power disconnect features and user-supplied options. For the power disconnect options, the 1336F-BRF75-AA-EN-HASP-L4 supports input fuses, a circuit breaker, output contactors, and rotary switches for the disconnect switch input contactors. Some of the options are provided as standard options when others are user-supplied depending on the type of input power that is used to power the drive. The 1336F-BRF75-AA-EN-HASP-L4 accommodates a control power transformer which is located inside the drive. Note that the transformer is rated for the drive and power options only.

Another custom option supported by the AB 1336F-BRF75-AA-EN-HASP-L4 adjustable frequency drive is the thermal overload relay option. The overload relay supported by the drive is Class 10 rated. This type of relay will take a maximum of 10 seconds to trip if the motor current exceeds 600% of the normal current rating. Although this feature is meant to protect the motor, its setting is redundant to the electronic overload protection feature that is also included with the drive. The AB 1336F-BRF75-AA-EN-HASP-L4 drive has a NEMA Type 1 rated enclosure and its programming, installation, and troubleshooting instructions are all provided in English. The 1336F-BRF75-AA-EN-HASP-L4 drive accommodates a human-machine interface module that only has programming capabilities and that also has an international protection rating of IP20 for its enclosure. The drive has a TTL contact on its control interface.

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
