| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1785-ENET |
1785-ENET 1785ENET AB AB Ethernet Interface Module
⇒ Click here for good price 1785-ENET
| Brand/Manufacturer | AB /USA |
| Part Number |
1785-ENET |
| Alternate Part Number | 1785-ENET |
| Description | MOTOR SERVO |
| Dimennsions |
3.3x14.8x27.4cm |
| Weight | 0.96kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

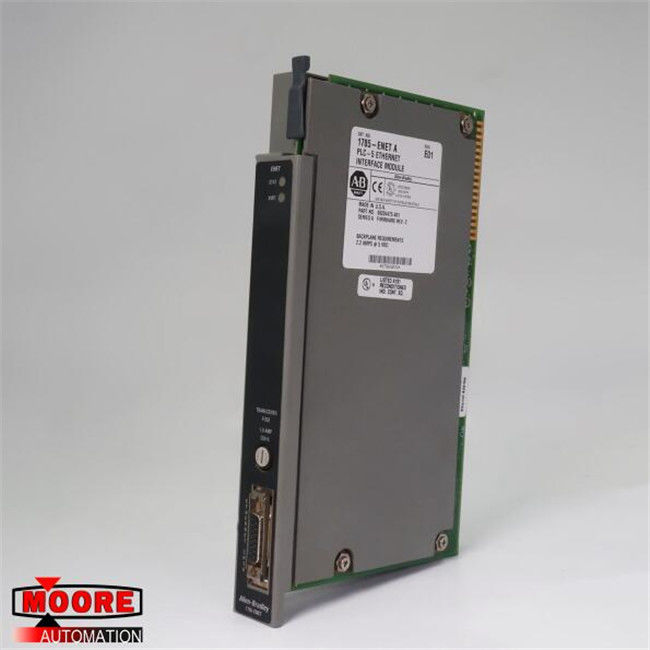

The 1785-ENET PLC-5 EtherNet Interface Module by Allen Bradley is an EtherNet/IP enabled interface module located on a single I/O slot of the 1771 I/O chassis; when attached to the Programmable Logic Controller (PLC-5) it enables EtherNet connectivity on the controller. This module has a backplane rating of 1.0 A at 5 Volts DC and dissipates 5 Watt power. When used with an enhanced PLC-5 controller, the 1785-ENET enables EtherNet connectivity without disabling the DH+/RIO ports and conveniently provides Ethernet connectivity with a ControlNet PLC-5 controller. It can also run dual Ethernet links with the Ethernet PLC-5 controller. This unit weighs approximately 0.77 kg (1.7 pounds) and has dimensions of 273.05 x 31.75 x 146.05 millimeters (10.75 x 1.25 x 5.75 inches).
The module provides a 50 Volt circuit isolation using basic insulation type tested for 60 seconds at 500 Volts AC between communications to systems and uses the Ethernet 802.3 compliant (TCP/IP) shielded or unshielded twisted wire pair for connections. It has 2 “on” communications ports in the wire category, and supports the Ethernet (TCP/IP protocol 8-pin RJ45 port) communication protocol. With a designated T5 (North America) and IEC T5 temperature code, it is tested to operate without derating around a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) at 5% to 95% non-condensing relative humidity. It is also tested to withstand a 2.0 G operational vibration at 10 to 500 Hertz and to maintain the standard specified functionality at an operational shock of 30 G.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
