| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1784-PKTXD |

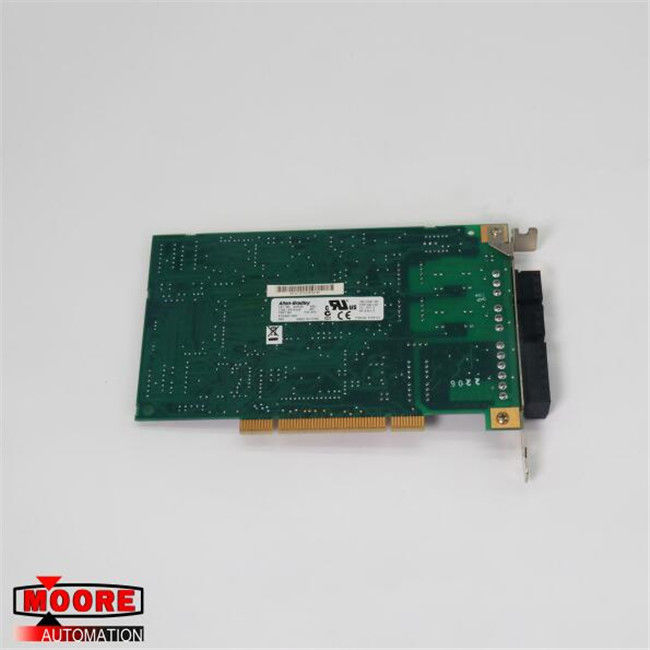

1784-PKTXD 1784PKTXD AB AB PCI Bus Card
⇒ Click here for good price 1784-PKTXD
| Brand/Manufacturer | AB/USA |
| Part Number |
1784-PKTXD |
| Alternate Part Number | 1784-PKTXD |
| Description | MOTOR SERVO |
| Dimennsions |
2.1x18x12.6cm |
| Weight | 0.16 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1784-PKTXD Card is an AB Network Interface Card. The 1784-PKTXD Network Interface Card is used for connecting PCs to PLC controllers through the Data Highway Plus (DH+) or the SLC processors, and on the DH485 networks. This allows the unit to achieve an easier and more efficient data acquisition process which is critical for industrial applications. The 1784-PKTXD Card comes with the I/O scanner functionality that is also available in different cards and is used with the soft-control or the embedded control engines. The 1784-PKTXD Card incorporates the Universal PCI card as a standard feature. Therefore, the card is compatible with different operating systems. The 1784-PKTXD Card can be used in environments where there is a need for general programming, configuration, and monitoring capabilities through an industrial device or through a computer desktop.
The 1784-PKTXD Card is ideal for use as a network interface card. Therefore, since it is a peripheral component interconnect universal card, it must be inserted into the PCI bus slot. If the operators are using a universal card, it must be placed in a PCI bus slot keyed for either the 3.3-Volt or for the 5-Volt signaling. The 1784-PKTXD Card communicates with the nodes that are placed on the Data Highway Plus network. This includes the PLC-5, the PLC-5/250, and the SLC 5/04 processors. The component performs data transmission, management, and the local network diagnostics. The 1784-PKTXD Card and the host PC exchange the data through a dual-port interface. This dual-port interface requires up to 4 KB of memory that begins at the base memory address that is addressed to the card by the PCI BIOS whenever the PC is started.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
