2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display
  • 2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display
  • 2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display

2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display

Place of Origin USA
Brand Name AB
Certification CO.CQ
Model Number 2711-M3A18L1
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
2711-M3A18L1
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
AB
Weight:
4lbs
High Light:

2711-M3A18L1

,

Micro Monochrome Display

,

AB 12711-M3A18L1

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display



⇒ Click here for good price 2711-M3A18L1



Brand/Manufacturer   AB/USA
Part Number

  2711-M3A18L1

Alternate Part Number   2711-M3A18L1
Description   MOTOR SERVO
Dimennsions

  13.2x11x5cm

Weight   0.28kg



Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)



Product Details

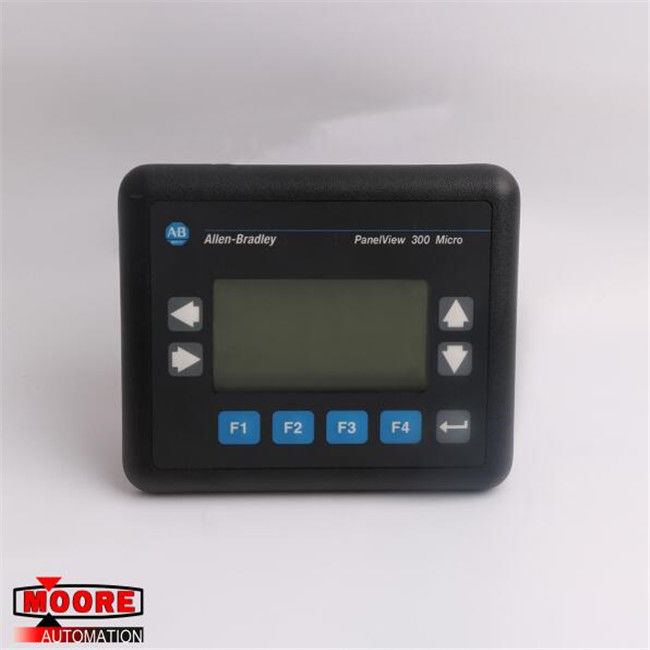

The 2711-M3A18L1 is a discontinued AB PanelView Standard 300 Micro Terminal. It is an electronic operator interface solution that provides functionality based on color, grayscale, or monochrome display and has pixel graphics capabilities. The PanelView Standard 300 is available in several sizes and configurations to meet application requirements. All these variations improve operator productivity and simplify programming. The 2711-M3A18L1 PanelView Standard 300 Micro comes with an operator input keypad with four function keys and an LCD monochrome color display that has an LED backlight with a standby life of 100,000 hours. Its display dimension is 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64.



The 2711-M3A18L1 PanelView Standard 300 Micro comes with an irreplaceable battery and a runtime application memory of 170 KB that runs on PanelBuilder32 software. It has an RS-232 (DF1) communication port. The 2711-M3A18L1 PanelView’s input voltage is between 11 to 30 Volts DC (24 Volts DC nominal), with a power consumption of 25 Watts max (0.105 amps at 24 Volts DC). The approximate weight of the 2711-M3A18L1 PanelView Standard 300 Micro is 284 grams (10 ounces), and it has a dimension of 133 x 111 x 48 millimeters (5.23 x 4.38 x 1.87 inches) (length, breadth, and height). The 2711-M3A18L1 PanelView Standard 300 Micro has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit) and a working relative humidity range from 5-95% noncondensing at 0 to 55 degrees Celsius (32 to 131 °F) working temperature. It has a Shock rating of 30 g and operational vibration of 2 g.

2711-M3A18L1 2711M3A18L1 AB AB PanelView 300 Micro Monochrome Display 0



Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
