| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1336S-MCB-SPI |

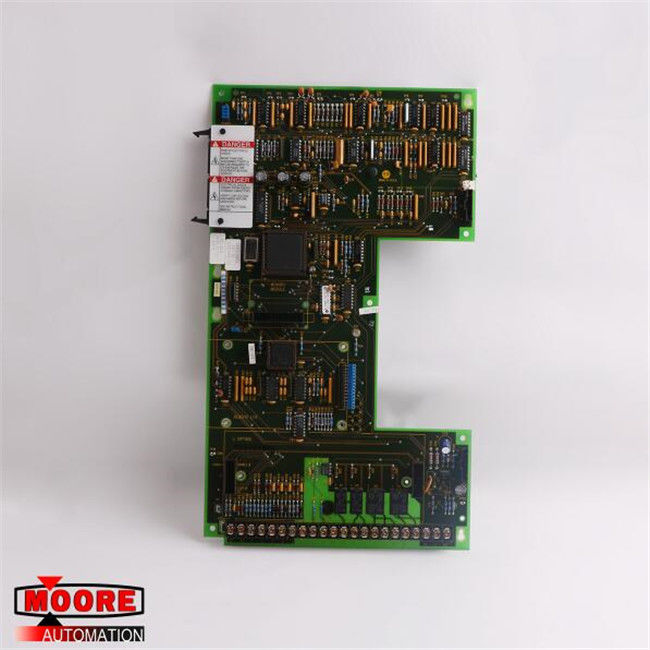

1336S-MCB-SPI 74100-071-51 AB AB PC Board
⇒ Click here for good price 1336S-MCB-SPI
| Brand/Manufacturer | AB /USA |
| Part Number |
1336S-MCB-SPI |
| Alternate Part Number | 1336S-MCB-SPI |
| Description | MOTOR SERVO |
| Dimennsions |
37.5x23.2x2.3cm |
| Weight | 0.48kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1336S-MCB-SPI is a PC board with main inverter control that weighs approximately 5 lbs and is made for use with 1336 PLUS drives. This board handles the main control of 1336 PLUS drives and it is compatible with drives that have B, C, D, E, F, G, or H frames. Note that it is only possible to install one 1336S-MCB-SPI board per drive and its alternative part numbers are MEL80830, 74100-071-51, and Circuit Board T33603.
These 1336 PLUS three-phase drives with boards like the 1336S-MCB-SPI are ideal for use with general purpose applications. They come with input voltages ranging from 200 to 600V AC or 310 to 775V DC, a kW rating of 0.37 kW at the lowest to 448 kW at the highest, and an HP rating of a minimum of 0.5 HP to a maximum of 600 HP. These drives also make use of other programming languages aside from English, specifically French, Italian, German, and Spanish, and the 1336S-MCB-SPI may or may not have a human interface module (HIM) installed. Note that these HIM come with display panels which show the current status of the drive and control panels with keypad inputs.
1336 PLUS drives, even with the 1336S-MCB-SPI board installed, do not have any short circuit fusing for the input power. For protection, these drives will trip when they reach specific AC or DC voltage limits. These drives are recommended for use at temperatures of 0 to 40 °C, except for those with an open type enclosure since they can work at up to 50 °C. All 1336 PLUS drives can also be stored at a temperature ranging from -40 to 70 °C.
