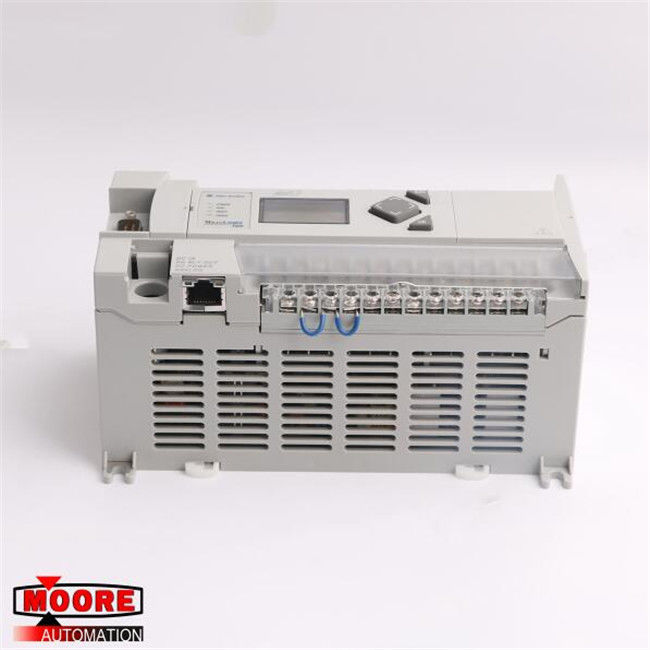

1766-L32BXBA 1766L32BXBA AB AB MicroLogix 1400 PLC Controller

1766-L32BXBA 1766L32BXBA AB AB MicroLogix 1400 PLC Controller

⇒ Click here for good price 1766-L32BXBA

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1766-L32BXBA is a MicroLogix 1400 Controller. It combines EtherNet/IP, online editing capabilities, and a built-in LCD with a high I/O count and enhanced network capabilities into one controller. It also features a backlight on the LCD for setting network configuration. The 1766-L32BXBA controller requires a 24 Volt DC input power and has battery-backed RAM. It supports 32 digital I/O points with 12 digital fast 24 Volt DC inputs, 8 digital 24 Volt DC inputs, 6 relay outputs, 3 fast 24 Volt DC outputs, 3 normal 24 Volt DC outputs and 6 analogs (12 bits) I/O points with 4 inputs and 2 outputs. It can connect to up to seven 1762 expansion I/O modules for further expansion.

It has measures 3.5 x 7.08 x 3.43 inches and weighs 2 pounds. For communication, it has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. It is programmed with RSLogix 500/Micro programming software (Version 8.1 and above). For installation, it has Panel or DIN-Rail mounting options and an open enclosure. It is suitable for use in a clean, dry, industrial environment with circuits not exceeding Over Voltage Category II. The 1766-L32BXBA controller’s Ethernet port provides DNP3 protocol support as well as a web server and email capabilities. Its 2 Serial ports have DH485/DF1/Modbus RTU/DNP3/ASCII protocol support. It has up to 6 embedded 100 kHz high-speed counters (only for controllers with DC inputs). The 1766-L32BXBA also has 20 KB of memory for user programs and data.

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
