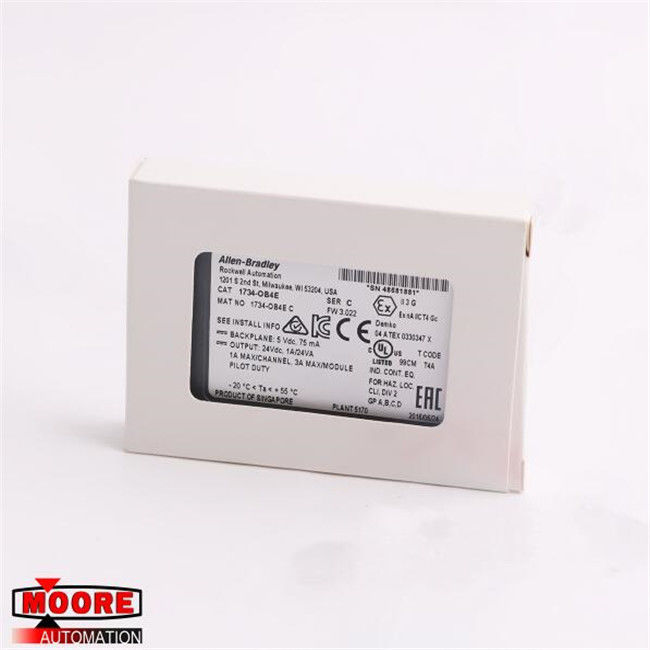

1734-OB4E 1734OB4E AB AB 4 Channel Output Module
  • 1734-OB4E 1734OB4E AB  AB 4 Channel Output Module
  • 1734-OB4E 1734OB4E AB  AB 4 Channel Output Module

1734-OB4E 1734OB4E AB AB 4 Channel Output Module

Place of Origin USA
Brand Name AB
Certification CO.CQ
Model Number 1734-OB4E
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
1734-OB4E
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
AB
Weight:
4lbs
High Light:

1734-OB4E

,

4 Channel Output Module

,

AB 1734-OB4E

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



1734-OB4E 1734OB4E AB AB 4 Channel Output Module



⇒ Click here for good price 1734-OB4E



Brand/Manufacturer   AB/USA
Part Number

  1734-OB4E

Alternate Part Number   1734-OB4E
Description   MOTOR SERVO
Dimennsions

  8x6x1.7cm

Weight   0.04kg



Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)



Product Details

The AB 1734-OB4E comes in a modular design which selects the I/O, terminal style, and network interface. It offers digital and analog selections and it can mount horizontally or vertically without de-rating. The module has up to 8 single-ended inputs and outputs and these come in thermocouple and RTD modules available with individually configurable channels. It has onboard scaling and a choice of input filters. The 1734-OB4E has 4 current sourcing, electronically protected, and enhanced sourcing outputs. The 1734-OB4E has a conducted radio frequency of 10Vrms with 1kHz sine-wave 80% AM from 80 to 150 MHz. It has a wire size of 2.5millimeters-0.34millimeters squared solid or stranded copper wire rated at 75 degrees Celsius or greater with 1.2-millimeter insulation maximum. The model's dimensions in inches are 2.21 x 0.47 x 2.97 inches and it has an ESD immunity of 6 kV contact discharges and 8 kV air discharges. Its indicators are 4 yellow output statuses, 4 red output fault indicators, and 2 green/red module network status indicators.


The 1734-OB4E's isolation voltage is 50 Volts continuous, tested to withstand up to 2500 Volts DC for 60 seconds. It comes with 1 key switch position and a mass of 33.17g. It has a maximum OFF-state leakage of 0.5 mA and a max OFF-state voltage of 28.8 Volts DC. The module has an ON-state current of 1.0mA min per channel and an ON-state voltage drop of 0.2 Volts DC. The 1734-OB4E has a 24 Volts DC nominal On-state voltage and a voltage range of 10 to 28.8 Volts DC. While operating, its temperature is -20 to 55 degrees Celsius and it has an output current rating of 1.0 Amps not exceeding 3.0 Amps per module. The maximum output signal delay for ON to OFF and OFF to ON is 0.1 milliseconds. The 1734-OB4E’s point bus current is 75mA maximum at 5 Volts DC. The power dissipation is 1.2W max at 28.8 Volts DC. The module has a surge current of 2 Amps for 10 milliseconds, repeatable for 3 seconds. It has thermal dissipation of 4.1 BTU/hour maximum at 28.8 Volts DC.

1734-OB4E 1734OB4E AB  AB 4 Channel Output Module 0
