| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1791-OB32 |

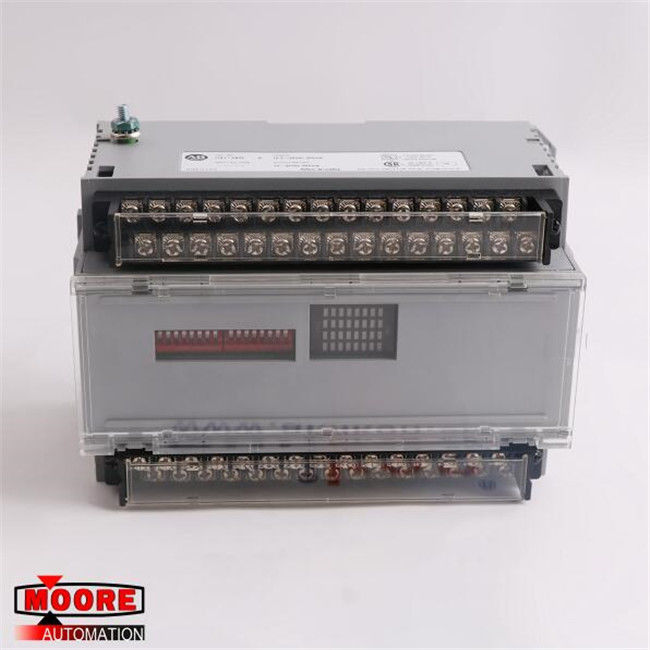

1791-OB32 1791OB32 AB AB Discrete DC Block I/O Module
⇒ Click here for good price 1791-OB32
| Brand/Manufacturer | AB/USA |
| Part Number |
1791-OB32 |
| Alternate Part Number | 1791-OB32 |
| Description | MOTOR SERVO |
| Dimennsions |
18x12.6x9.6cm |
| Weight | 0.8kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1791-0B32 is a 1791 Discrete DC Block I/O Module. It is a remote I/O device containing all necessary elements like a programmable controller interface, power supply, input/output connections and a signal generating circuit. The 1791-0B32 is compatible with the PLC-2, PLC-3, PLC-5/250 and the PLC-5 series of programmable controllers, and the SLC 5/02 series of modular controllers. It is a cost-effective mounting for smaller, less expensive enclosures for various applications such as packaging, material handling, and operator interface panels.
The 1791-0B32 module is a Series B with 24V DC nominal voltage and 300mA current requirement. It has 32 outputs per block and dimensions of 6.95 x 4.35 x 3.85 in. It has output current rating of 500mA at 60 °C for vertical mounting and 250mA at 60 °C for horizontal mounting. The 1791-0B32 has a maximum power dissipation of 19.2W and maximum thermal dissipation of 65.5 BTU/hr. It has minimum On-state Current of 1mA per output, a maximum On-state voltage drop of 1V at the rated current, and a maximum Off-state leakage current of 0.5mA. The 1791-0B32 has a maximum output signal delay of 0.5ms at On-state and 1.0ms at Off-state. For wiring, 2.0 〖mm〗^2 (14 AWG) solid standard wire with maximum insulation of 3/64 in. should be used. It utilizes Universal Remote I/O communication for distributing I/O at remote locations.
The 1791-0B32 module contains removable terminal strips in which power and I/O connections are made, saving maintenance time by eliminating rewiring in case of block replacement. It contains two switch assemblies for setting the starting I/O group, I/O rack number, communication rate, last state, and last chassis. The 1791-0B32 has 1 COMM, 1 STATUS, and 16 I/O Status indicators for monitoring and troubleshooting.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
