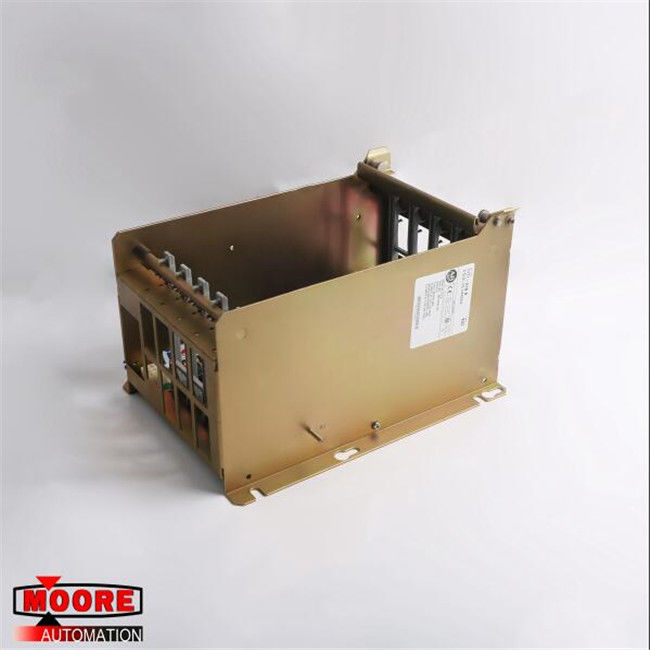

1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack
  • 1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack
  • 1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack

1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack

Place of Origin USA
Brand Name AB
Certification CO.CQ
Model Number 1771-A1B
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
1771-A1B
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
AB
Weight:
4lbs
High Light:

1771-A1B

,

I/O Chassis

,

AB 1771-A1B

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack



⇒ Click here for good price 1771-A1B



Brand/Manufacturer   AB /USA
Part Number

  1771-A1B

Alternate Part Number   1771-A1B
Description   MOTOR SERVO
Dimennsions

  31.5x23x19.5cm

Weight   3.6kg



Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)



Product Details

The 1771-A1B is an AB PLC-5 Chassis . The AB 1771-A1B chassis is the backbone of every AB PLC-5 programmable controller system. This chassis provides a communication path between various I/O modules and either the controller or the I/O adapter module. 1771-A1B is a universal and compact enclosure for the processor, power-supply modules, remote and extended-local I/O adapter modules, and I/O modules. 1771-A1B chassis has 4 slots for mounting various modules. The far-left slot of 1771-A1B chassis is reserved for either the processor or adapter module. The other slots in the chassis are compatible with communication modules, I/O modules, and power-supply modules. It is crucial to follow the compatibility tables for each PLC-5/1771 module. Please note the 1771-A1B is part of series B. Power supplies 1771-P1, -P2, -P7 and -PS7 can be mounted on the left side plate of the 1771-A1B chassis.



The 1771-A1B chassis is designed for panel mount installation. 1771-A1B chassis can receive power through processors with integral power supplies that provide 2 to 4 amps, power supply modules that provide 3 to 8 amps, and external power supplies that provide 6.5 to 16 amps. The largest back-plane current for the 1771-A1B is 16 amps operating at 5 Volts DC. The 1771-A1B chassis must be connected to a central ground bus via grounding studs situated on the chassis itself. The chassis’ power supply is configured via the configuration jumper. The jumper has two positions: "N" - position for external power supply, and "Y" - position for power-supply module or processor with and an integral power supply. 1771-A1B chassis cannot be powered with both a power-supply module and an external power supply at the same time.

1771-A1B 1771A1B AB AB 4 Slot I/O Chassis Mounting Rack 0
