| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1747-BSN |

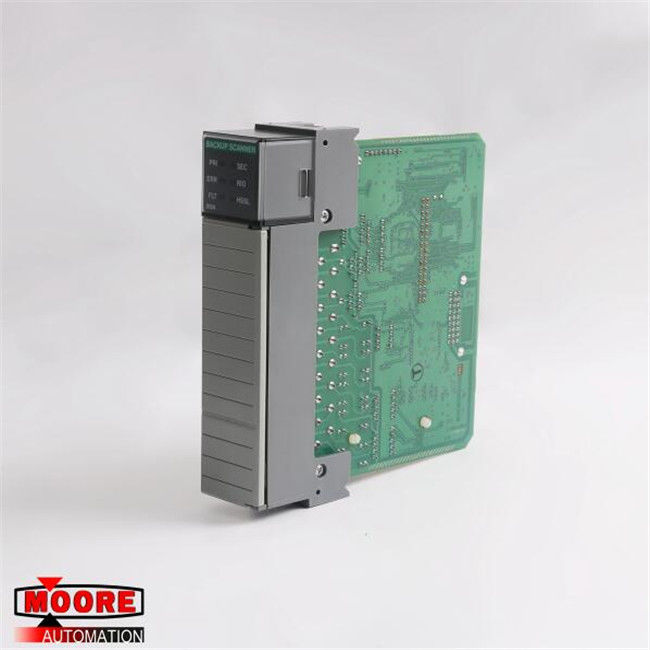

1747-BSN 1747-BSN AB AB SLC Backup Scanner Module
⇒ Click here for good price 1747-BSN
| Brand/Manufacturer | AB/USA |
| Part Number |
1747-BSN |
| Alternate Part Number | 1747-BSN |
| Description | MOTOR SERVO |
| Dimennsions |
3.5x13x14.5cm |
| Weight | 0.32kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1747-BSN is a backup scanner module. The 1747-BSN backup scanner is available with redundancy for remote I/O (RIO). The 1747-BSN is equipped with RS-232 channel switching for communication with devices such as operator interfaces. This module also has a DH+ link. This module is a set of complementary modules, with one module located in the main system and other modules in the secondary or backup system. The main module controls all the remote I/O operations. The secondary module is available to take over the control if something goes wrong on the primary module. The backup scanner has the ability to switch between 2 communication channels. The first channel can be configured as RIO or DH +. The second channel is used to replace the RS-232/485 channels to provide connections for the operator's electronic interface. DH+/RIO and RS-232/485 channels can be used together.
The AB 1747-BSN provides a High-Speed Serial Link (HSSL) for writing retentive data from the primary processor to secondary processor. In addition, this module has a Local Serial Link (LSL) to convey status information between several 1747-BSN modules residing on the same chassis. The 1747-BSN has a backplane current consumption of 800 mA at 5V. The AB 1747-BSN’s operating temperature is 32-140 °F and its storage temperature is -40-185 °F. The relative humidity is from 5-95%, noncondensing. Please remember to make sure that you have set the DIP switch correctly before installing the scanner.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
