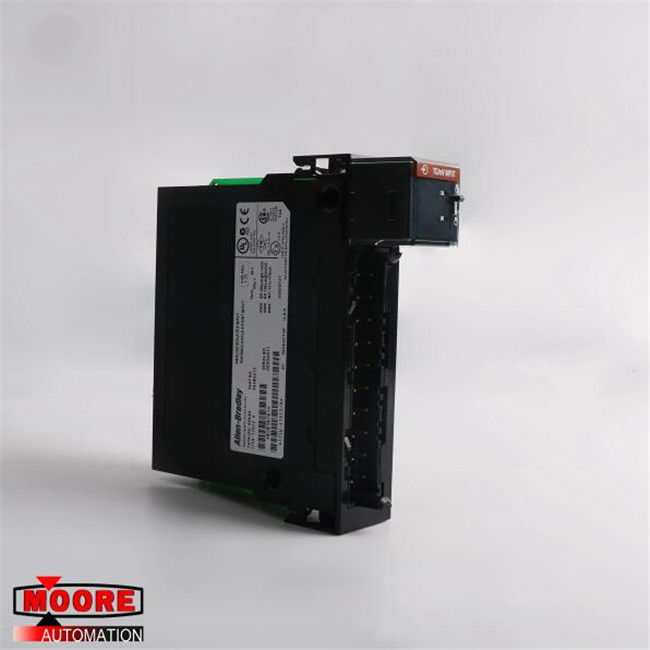

1756-IT6I2 1756IT6I2 AB AB Analog I/O Module
⇒ Click here for good price 1756-IT6I2
Brand/Manufacturer | AB/USA |
Part Number |
1756-IT6I2 |
Alternate Part Number | 1756-IT6I2 |
Description | MOTOR SERVO |
Dimennsions |
3.5x14x14.5cm |
Weight | 0.28kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-IT6I2 is an analog I/O module. This module is an enhanced thermocouple analog input module. That features Six (6) individually isolated thermocouple inputs and 2 CJC inputs. Thermocouple types compatible for this module are B, E, J, K, R, S, T, N, C, D, and L (TXK/XK). This module is installed to any ControlLogix chassis. It requires a Removable Terminal Block for wiring of signal wiring, specifically, only the 1756-TBNH is compatible for this module. The operating input ranges and resolutions of the 1756-IT6I2 module are -12 to 78 microvolts (1.4 microvolts per bit) and -12 to 30 mV (0.7microvolts per bit for the highest resolution range) and 16-bit resolution respectively. It has an input impedance of more than 10MOhms and a maximum overvoltage protection of 120 Volts AC/DC. Both the total backplane power and maximum power dissipation are 4.6Watts. Its thermocouple linearization is ITS-90 and offset drift is 0.5 microvolts per Degree Celsius. It also has a settling time of greater than 80 milliseconds to 5% of full scale and a channel bandwidth of 15 Hertz. Thermal dissipation is 15.7 BTU/hour. The 1756-IT6I2 has an open circuit detection time with a positive full-scale reading of 2 seconds. The integrated noise rejection in normal mode, is 60 dB at 60 Hertz while in common mode, it is a minimum of 160 dB, tested at 600 Volts AC/60 Hertz applied with 100 Ohms differential resistance. This module allows data format selection such as integer mode or a floating-point mode. Other features of the 1756-IT6I2 module include cold junction compensation, multiple input ranges, temperature units, notch filter, sensor type, real-time sampling, wire off detection, under-range/over-range detection, 10 ohms offset, a digital filter (only available in applications using floating point mode), rate alarm, and process alarms.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
