| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 2093-ASP06 |

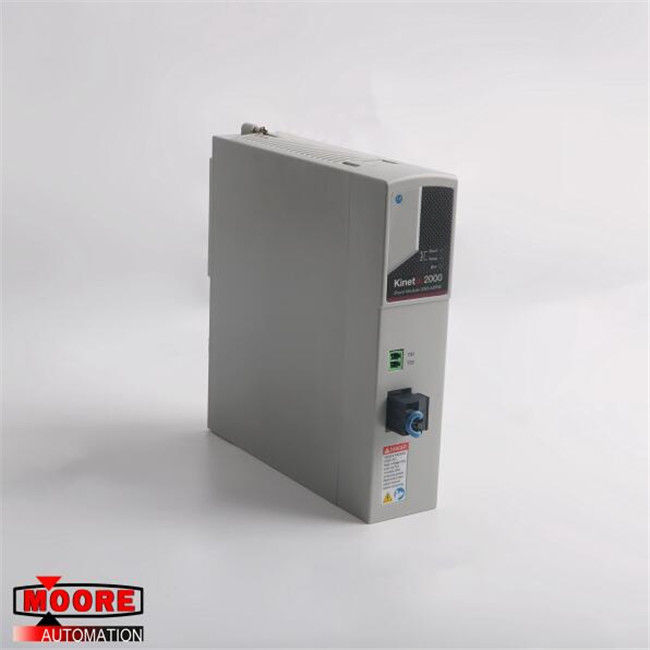

2093-ASP06 2093ASP06 AB AB Kinetix 2000 Shunt Module
⇒ Click here for good price 2093-ASP06
| Brand/Manufacturer | AB/USA |
| Part Number |
2093-ASP06 |
| Alternate Part Number | 2093-ASP06 |
| Description | MOTOR SERVO |
| Dimennsions |
4x17.7x16.5cm |
| Weight | 0.6kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 2093-ASP06 Kinetix 2000 Shunt Module by AB is a component of the Kinetix 2000 Drive System which is located on any inverter slot (the rightmost slot for the 2093-PRS8) of the 2093 Kinetix 2000 Power Rail and it is suitable for 230V AC applications. It has a drive voltage of 230V AC, with 15Ω internal resistance, and it is capable of delivering 10.9 KiloWatts of maximum power output. The shunt module has a maximum current rating of 27A, and it has a continuous output power of 50W with a capacitance of 164μF. The module is not internally fused and it is built to be compatible with the 2093-AC05-MP1, 2093-AC05-MP2, and the 2093-AC05-MP5 Kinetix 2000 Integrated Axis Modules.
The 2093-ASP06 module has a functional temperature range of 0-50 ° C (32-122 °F) at a relative humidity range of 5-95% without condensation and it can be stored at a temperature range of -40-85 ° C (-40-185 °F). The 2093-ASP06 is built for installation at a maximum altitude of 1000 meters (3281 feet) without de-rating and it can function optimally at a shock of 15G and a vibration of 2G at 55-500Hz. It has power dissipation as a percentage rated power outputs of 35.8W at 20%, 45.8W at 40%, 55.8W at 60%, 65.8W at 80%, and 75.8W at 100% power output. The module has a conformal coating and an IP2X environmental rating. The 2093-ASP06 weighs approximately 0.59Kg (1.3lb) and measures 183mm x 167.5mm x 40mm (7.2in x 6.6in x 1.6in) and is CE, and cUL-us certified.
