1791D-0B8P 1791D0B8P AB AB DC Compact Block Base Module I/O
⇒ Click here for good price 1791D-0B8P
Brand/Manufacturer | AB/USA |
Part Number |
1791D-0B8P |
Alternate Part Number | 1791D-0B8P |
Description | MOTOR SERVO |
Dimennsions |
14.7x5.2x3.8cm |
Weight | 0.18 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

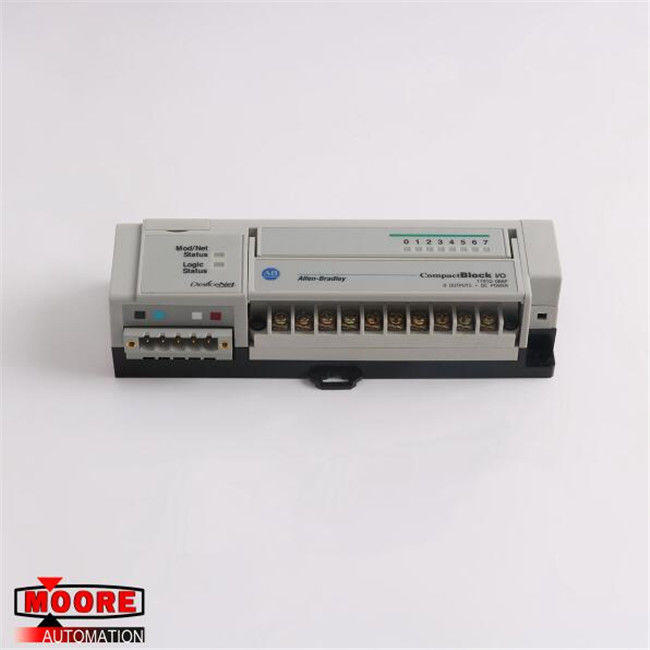

The AB 1791D-0B8P is a DC compact block base module I/O. The 1791D-0B8P is one of 1791D series. This module has 8 outputs and no inputs. However, you can expand the number of inputs and outputs by using an expansion module. There are two expansion schemes you can use. First, the 1791D-0B8P can be expanded into 24 outputs and 0 inputs. On this scheme, the module will consume 3 output bytes and produce 1 input byte. This extra byte is returned to or shows the health of the expansion module. Second, 1791D-0B8P can be expanded into 8 output and 16 inputs. This scheme will make the module consume 3 output bytes and 1 input byte. This expansion also can make the DeviceNet current jump to 200 mA while the voltage will be around 11 to 25 Volts DC.
The 1791D-0B8P contain several features: power supply, DeviceNet I/O adapter, and I/O circuit. The device power of this module is 10 to 30 Volts DC. Thus, it can accommodate a broad range of power supplies and many voltage levels. There is also output short-circuit protection. This feature would prevent any damage due to wiring mistakes. The I/O block is located near the sensors and actuators. This can help you to reduce wiring cost and time needed to install the module. The 1791D-0B8P also has several product certifications such as CE marked for all applicable directives, UL, UL hazardous class I, C-UL, and C-UL hazardous class I. The enclosure of this module follows IEC IP20 standard.
