| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-DMC |

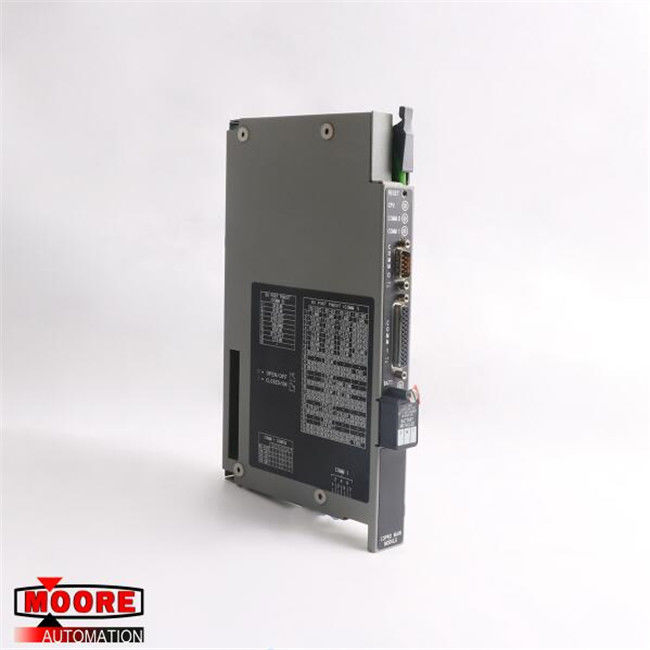

1771-DMC 1771DMC AB AB Control Coprocessor Main Module
⇒ Click here for good price 1771-DMC
| Brand/Manufacturer | AB /USA |
| Part Number |
1771-DMC |
| Alternate Part Number | 1771-DMC |
| Description | MOTOR SERVO |
| Dimennsions |
3x16.5x17.2cm |
| Weight | 1kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-DMC is a control coprocessor module. Unlike the traditional programmable controllers, it expands its capability. The module runs C, BASIC, and assembler programs. These allow the module to conduct tasks and applications more efficiently. Communication is technical because it uses the Ethernet or the asynchronous serial communication port in communicating to devices outside the controller system. The module can examine and manipulate the input and output information collected from the controller. Using the features of the C and BASIC programs, the module can compute complex math and algorithms.
The 1771-DMC control coprocessor's backplane current is 2.5 A at +5V DC without Ethernet. Its AUI port produces 450 mA at 15V DC backplane current. In environmental conditions, the operating temperature ranges from 0-60°C and the -40-85° C storage temperature. The relative humidity is 5 - 95% non-condensing. The communication ports are the RS-232 with 9-pins and wire category 2 at COMM0 and the RS-232/423/485/422 compatible with 25-pins and a wire category 2 at COMM1 in 60 °C.
The Ethernet ports can have TCP/IP protocol using the FTP, TELNET or the socket library routines; INTERCHANGE server, SNMP compatible (MIB I) with 15-pins standard transceiver and wire category 2, at 60°C, 802.3 compliant. The communication rates in Ethernet is 10 Mbps and 110, 150, 300, 600, 1200, 2400, 4800, and 9600 bps, 19.2 Kbps and 38.4 Kbps for COMM 0 and COMM 1.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
