| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1784-PKTX |

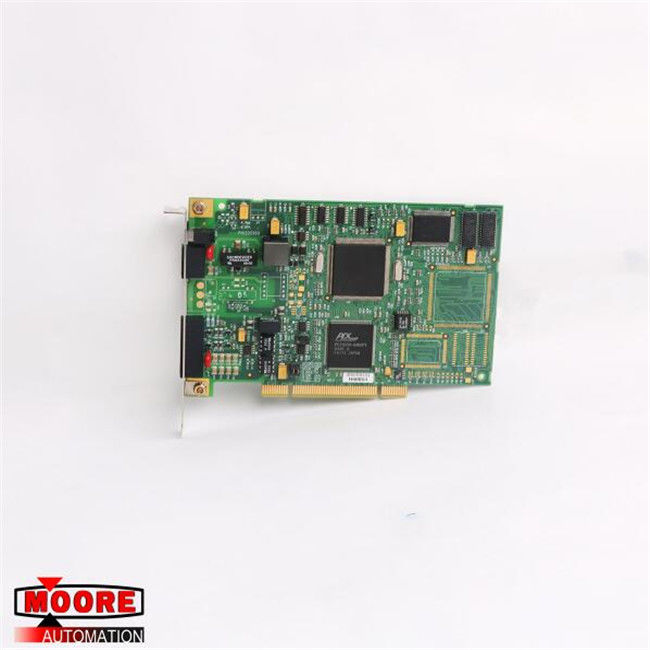

1784-PKTX 1784PKTX AB AB Data Highway Plus PC Card
⇒ Click here for good price 1784-PKTX
| Brand/Manufacturer | AB /USA |
| Part Number |
1784-PKTX |
| Alternate Part Number | 1784-PKTX |
| Description | MOTOR SERVO |
| Dimennsions |
2x17.8x12.6cm |
| Weight | 0.12kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1784-PKTX Network Interface Card by AB is a Peripheral Component Interconnect (PCI) device which directly interfaces a PC or a PC-based controller to a PLC connected to the Data Highway Plus (DH+) network or an SLC processor on the DH-485 Network for easy programming. The module is compatible with the Windows 95 and the Windows NT Operating System and is also compatible with other OS. For other Operating Systems, a user-specific Driver must be created. The module uses the RSLinx PKTx driver for devices connected to either the DH+ or the DH-485 Network, and it can connect to DH+ devices, using the 10 feet (3.2 meters) CP12 cable which has a 3-pin Phoenix End with Switchable Termination resistor. Also, the module uses the 1784-CP14 cable, which is a 6 pin Phoenix Connector with switchable termination resistor to connect to an SLC on DH-485 Network.
The 1784-PKTX has varying connection lengths with corresponding transfer rates, at 10,000 feet, the communication rate is at the 57.6K bit/s, at 5,000 feet, it is 115.2K bits/s, and at 2,500 feet, it is 230.4K bits/s. Connection rates on the DH-485 network at 4,000 feet is 1200 bits/s, 9600 bits/s or 19,200 bits/s, and for the Remote I/O is 230.4K bit/s at 2,500 feet through 57.6K bit/s at 10,000 feet. The module has a single LED status/Diagnostic indicator per channel, and BUS communication meets Local PCI compliance. The 1784-PKTX module has a working temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) at a tested 5 to 95% relative humidity without condensation, and it is rated for withstanding an operational shock of 30G and a vibration of 2G at 10 to 500 Hertz.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
