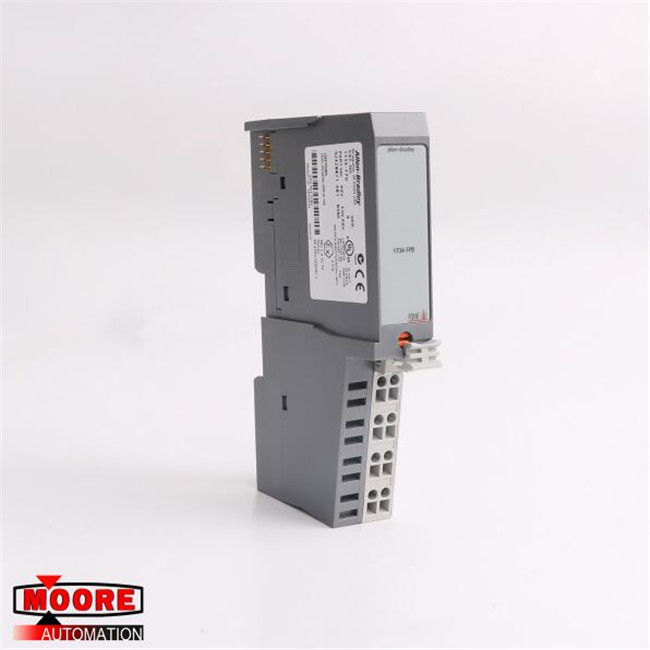

1734-FPD 1734FPD AB AB POINT I/O Field Distributor Module

1734-FPD 1734FPD AB AB POINT I/O Field Distributor Module

⇒ Click here for good price 1734-FPD

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The 1734-FPD is a field-side voltage distribution module and a member of the AB PLC series that is engineered to break down field power distribution. Moreover, it has no power consumption, thermal dissipation, or power dissipation. The 1734-FPD weighs 0.12 kg and operates either with AC or DC voltage. The working voltage ranges are 10-28.8V DC or 120-240V AC.

The /strong> has a continuous isolation voltage of 50V tested at 2600V DC for 60s and it has a terminal base screw torque of 0.6 Nm or 7 lb-in. In addition, the 1734-FPD measures 76.2 mm x 25.4 mm x 133.4 mm in dimension and requires a wire size of 0.25-2.5 mm² or 22AWG - 14 AWG stranded or solid copper wire rated at 75 °C. With a removable terminal block (RTB) and terminal handle, the 1734-FPD also has open-style enclosure type rating and can be mounted horizontally or vertically.

The 1734-FPD has a field power bus supply current of 10 A, with an operating temperature of -20-55 °C. The network connectivity of the 1734-FBD includes ControlNet, DeviceNet, EtherNet/IP, and other open networks using the 1734-adapters.

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
