| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1794-ACNR15 |

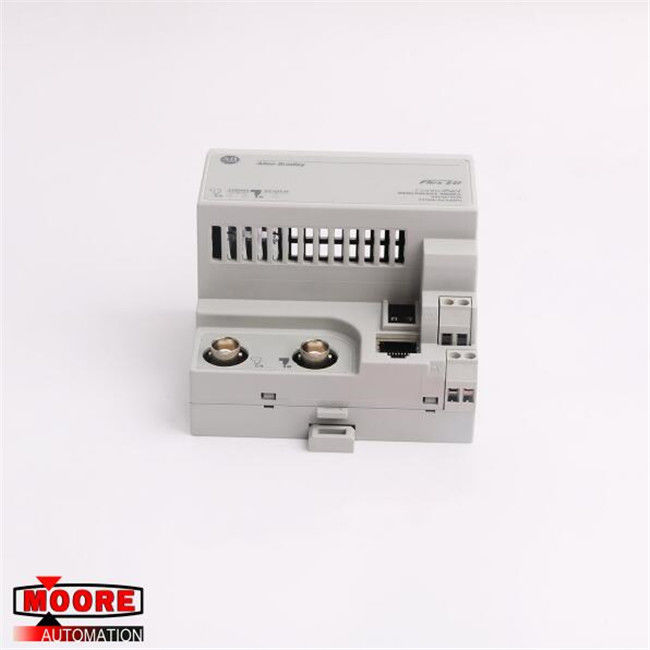

1794-ACNR15 1794ACNR15 AB AB Flex Controlnet Adapter
⇒ Click here for good price 1794-ACNR15
| Brand/Manufacturer | AB/USA |
| Part Number |
1794-ACNR15 |
| Alternate Part Number | 1794-ACNR15 |
| Description | MOTOR SERVO |
| Dimennsions |
9.3x8.7x6.8cm |
| Weight | 0.22kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1794-ACNR15 Flex I/O ControlNet adapter module by AB is part of a programmable controller system. It is capable of high-speed data transfer, diagnostic messages, and local communication via a network access port on the ControlNet network. The 1794-ACNR15 can support 8 I/O modules connected via a quad shield RG-6 coaxial cable with a communication speed of 5 Mbps. It has an input voltage rating between 19.2 and 31.2 Volts DC (24 Volts DC nominal) at 400 mA and an output voltage rating of 5 Volts DC at 640 mA. It has an inrush current of 23 Amps through 2 milliseconds and draws a maximum 450mA current at 24 Volts.
The 1794-ACNR15 has an indicator which shows the I/O mode and status. It has a maximum flexbus output current of 640mA and an isolation voltage of 850 Volts tested for 1 second between power and the flexbus. The 1794-ACNR15 can be mounted using a DIN rail or wall mount via 7 pound-inches terminal screws. Its dimensions of 87 x 94 x 69 millimeters and it weighs approximately 220 g (7.76oz). The 1794-ACNR15 has a T4 temperature code and dissipates 3.4 W of heat at 19.2 Volts DC in an open-style enclosure type rating. It has an operational temperature range between -25 and 55 degrees Celius (-13 and 131 degrees Fahrenheit) at 5-95% non-condensing relative humidity. It has a maximum operational shock rate of 30G and can reach 50G in non-operational mode and a 5.0G operational vibration at 10 to 500 Hertz.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
