| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-OBD |

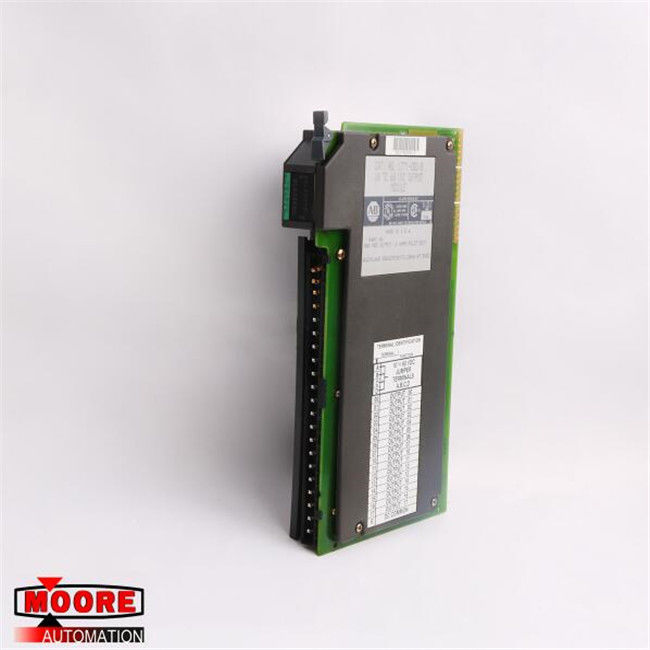

1771-OBD 1771OBD AB AB 16 Point Digital Output Module
⇒ Click here for good price 1771-OBD
| Brand/Manufacturer | AB /USA |
| Part Number |
1771-OBD |
| Alternate Part Number | 1771-OBD |
| Description | MOTOR SERVO |
| Dimennsions |
3x14.5x25.3cm |
| Weight | 0.42kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-OBD module is a DC output module that has 16 outputs. It is located on AB 1771-A1B and 1771-A4B I/O chassis, and its user supply voltage can range from 10 to 60 Volts of DC power. With a current rating of 2 Amps per output of resistive current and of 0.2 Amps per output pilot duty current, the nominal on-state output voltage of the 1771-OBD module is 48 Volts DC. It has a maximum surge current of 4 Amps per output for 10 milliseconds, which is repeatable every 2 seconds. The 1771-OBD module has a minimal load current of 2.5 mA, and its maximum on-state voltage drop is 1.5 Volts DC while its maximum off-state leakage current is .5 mA.
The maximum power dissipation of the 1771-OBD module is 15.6 W, its maximum thermal dissipation is 53.3 BTU/hour, and its maximum backplane current is 400 mA at 5 Volts DC. Connecting or disconnecting a cable without first cutting off the power from the sides of the field can cause an electrical arc. With an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a relative humidity range of 5 to 95% (without condensation), this module is a durable device that can withstand many different conditions. The 1771-OBD has an operating shock of 30 G (3-pulse at 11 milliseconds) and a nonoperating shock of 50 G (3-pulse at 11 milliseconds). Additionally, the 1771-OBD has an ESD immunity of 4 kV contact discharges and 8 kV air discharges.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
