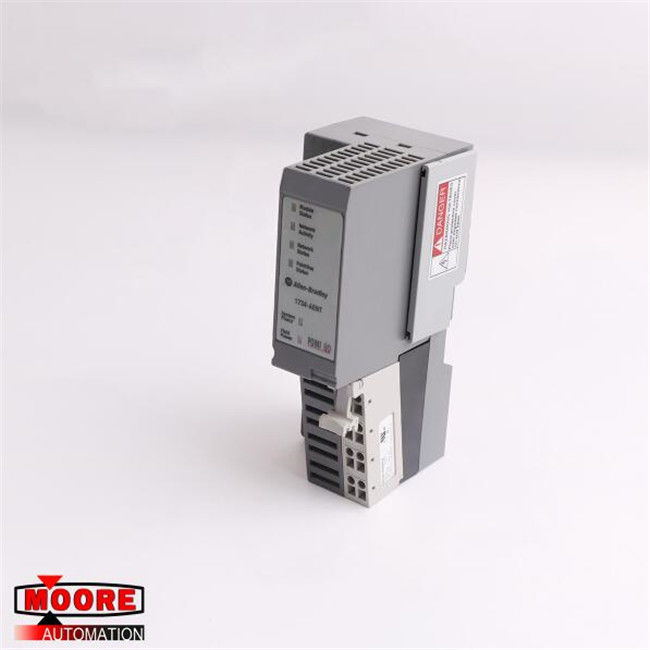

1734-AENT 1734AENT AB AB POINT I/O Ethernet Network Adaptor

1734-AENT 1734AENT AB AB POINT I/O Ethernet Network Adaptor

⇒ Click here for good price 1734-AENT

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1734-AENT Adapter has EtherNet/IP and it has been encapsulated in a standard TCP/UDP/IP protocol. In this module, you do not need to schedule the network and routing tables. The 1734-AENT comes with a common application layer with the ControlNet and the DeviceNet networks. This module also comes with interfacing via a Category 5-rated twisted pair cable. This module has half and full-duplex. Its operate at 10 Mbit or at 100 Mbit. This module is equipped with a DIN rail mount. This module can communicate with other POINT I/O modules on the same DIN rail. This module’s communication is supported by RSLinx software. The IP addresses in this module are assigned via the standard BootP or DHCP tools. In RSLogix 5000 software, you can configure the input and output. The AB 1734-AENT can support connections from several controllers simultaneously. The 1734-AENT adapter has 24 Volts DC input voltage rating and an inrush current of 6 A max with dimensions of 30 x 2.16 x 5.25 inches. This Ethernet/IP adapter module has an RJ-45, Category 5 Ethernet Connector.

The AB 1734-AENT adapter acts as a bridge between the POINT I/O module and the network, so the user control real-time I/O data. This module has messaging data support for configuration and programming information (these are also known as explicit messages). The 1734-AENT adapter uses a Common Industrial Protocol (CIP). CIP is the application layer protocol that is specified for Ethernet/IP or Ethernet Industrial Protocol and for the ControlNet network and DeviceNet. This is a message-based protocol that implements a relative path for sending messages from the device in a system to the consuming device. When you apply power to the POINT I/O system and create an I/O connection, transition the output to Idle State, apply the Idle State data before switching to RUN mode. This happens even when the controller makes the connection in RUN mode.
