| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-OY |

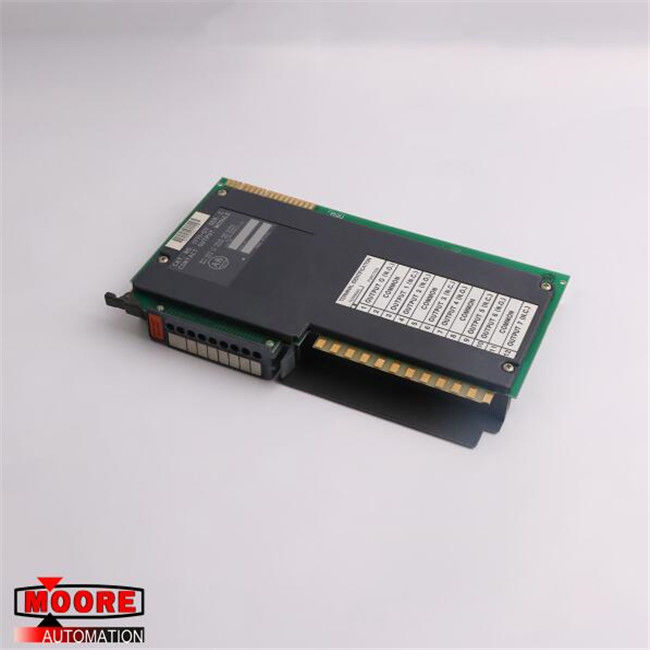

1771-OY 1771OY AB AB Contact Output Module
⇒ Click here for good price 1771-OY
| Brand/Manufacturer | AB /USA |
| Part Number |
1771-OY |
| Alternate Part Number | 1771-OY |
| Description | MOTOR SERVO |
| Dimennsions |
2.8x15x25.5cm |
| Weight | 0.42kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-OY is a PLC-5 contact output module. Four selectable contact output points are available with this module. It also has a maximum voltage of 30 VA at 138V AC or 20 VA at 125V DC per output. The operating voltages of this module are 0-250V AC and 0-175V DC. It has a backplane current of 550 mA and a maximum continuous current per module of 2 A at 100V AC with a maximum of 200 VA. The 1771-OY module has signal delays, specifically a typical DC signal delay of 50 ms and a typical AC signal delay of 45 ms +/- 15, both when the module is turned off. It is rack mountable and uses a 1771-WH wiring arm.
Note that the 1771-OY module contains mercury, so you should handle it with care. Avoid subjecting it to excessive vibration because this might break the glass capsule that houses the mercury.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
