| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 2711-T5A20L1 |

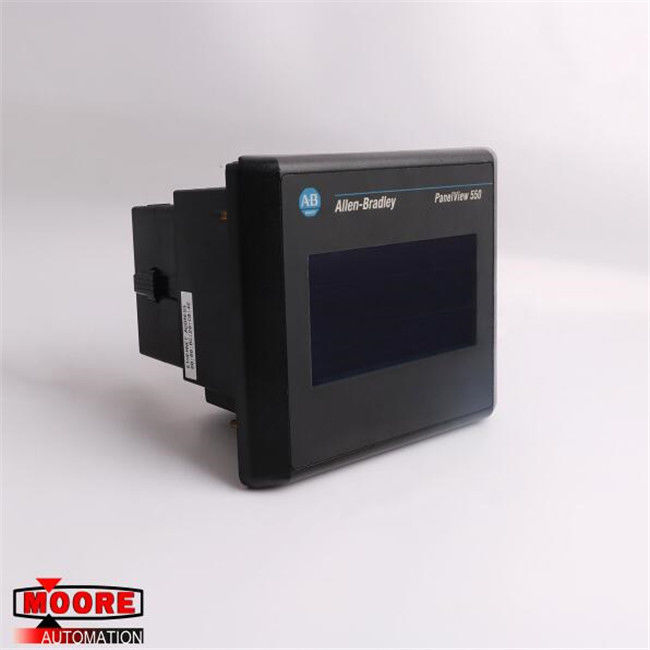

2711-T5A20L1 2711-T5A20L1 AB AB PanelView 550 Monochrome Touchscreen
⇒ Click here for good price 2711-T5A20L1
| Brand/Manufacturer | AB/USA |
| Part Number |
2711-T5A20L1 |
| Alternate Part Number | 2711-T5A20L1 |
| Description | MOTOR SERVO |
| Dimennsions |
18.5x13x15cm |
| Weight | 0.96kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The PanelView 550 is an operator interface which possesses a monochrome LCD and pixel graphics. It communicates serially with PLC and SLC controllers over DeviceNet, ControlNet, EtherNet/IP, DH-485, DH+, and remote I/O networks. The 2711-T5A20L1 PanelView 550 has a touch-screen input system, and a monochrome blue LCD, with an LED backlight. It has a display dimension of 120 x 60 millimeters (4.75 x 2.38 inches), and a display resolution of 128 x 64, with 100,000-hour, LED back-light standby life. The 2711-T5A20L1 PanelView 550 comes with a replaceable battery, and a runtime application memory of 170 KB, which runs on a PanelBuilder32 software. It has a DH-485 communication port and can support an ATA Memory card. The input voltage of the 2711-T5A20L1 PanelView 550 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 18 Watts (0.75 Amps at 24 Volts DC). With a weight of 1.48 pounds, the 2711-T5A20L1 PanelView 550 has a dimension of 6.0 x 7.28 x 3.20 inches. The 2711-T5A20L1 PanelView 550 has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range between 5 and 95% non-condensing between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit). It has a Shock rating of 30g and operational vibration of up to 2g.
