| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1794-ACN15 |

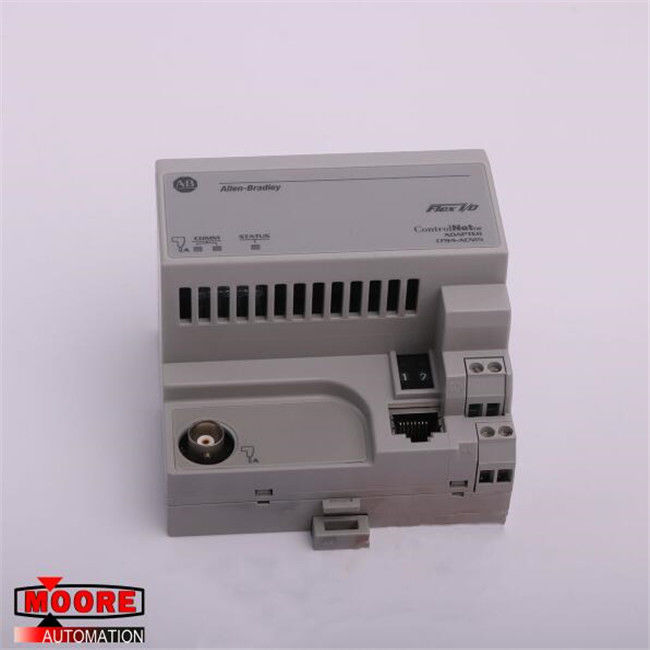

1794-ACN15 1794ACN15 AB AB Flex ControlNet Adapter
⇒ Click here for good price 1794-ACN15
| Brand/Manufacturer | AB/USA |
| Part Number |
1794-ACN15 |
| Alternate Part Number | 1794-ACN15 |
| Description | MOTOR SERVO |
| Dimennsions |
9.4x8.7x6.9cm |
| Weight | 0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1794-ACN15 is a Flex I/O adapter module for the ControlNet Single Media Flex I/O PLC. This Flex I/O adapter module contains a built-in power supply that converts 24 Volts DC from the backplane to power the Flex I/O modules with a current rating of 400 mA at a full load and with a voltage rating of 19.2 to 31.2 Volts DC (this includes a 5% AC ripple). One adapter can function with up to 8 I/O modules, which have communication speeds of up to 5 Mbps. The maximum power dissipation of the 1794-ACN15 is 3.4 Watts at 19.2 Volts DC, with a thermal dissipation of 15.7 BTU/hour maximum at 19.2 Volts DC. Its inrush current is 23 Amps for 2 milliseconds with a current draw of 450 mA maximum or 330 mA at 24 Volts DC.
The 1794-ACN15 is mounted with a DIN rail to the ground chassis for proper grounding, and the users can use a zinc-plated yellow-chromate steel DIN rail with an open-type design. It is European Zone 2 and North American Hazardous Location-approved, it has a protection rating of IP20 to prevent injuries and to the users and damage to the machine, and it should be mounted in an enclosure that is suitable for a specific environment. The equipment’s temperature rating runs between -25 and 55 degrees Celsius, and its power wiring must not exceed 32.8 feet (10 meters) in length. Its total size is 3.6 x 3.7 x 3.44 inches (87 x 94 x 69 millimeters) and it weighs up to 0.3 pounds (0.136 kilograms). The 1794-ACN15 has the following indicators: I/O status - red/green, Comm A - red/green, and Comm B - red/green.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
