| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1756-L73 |

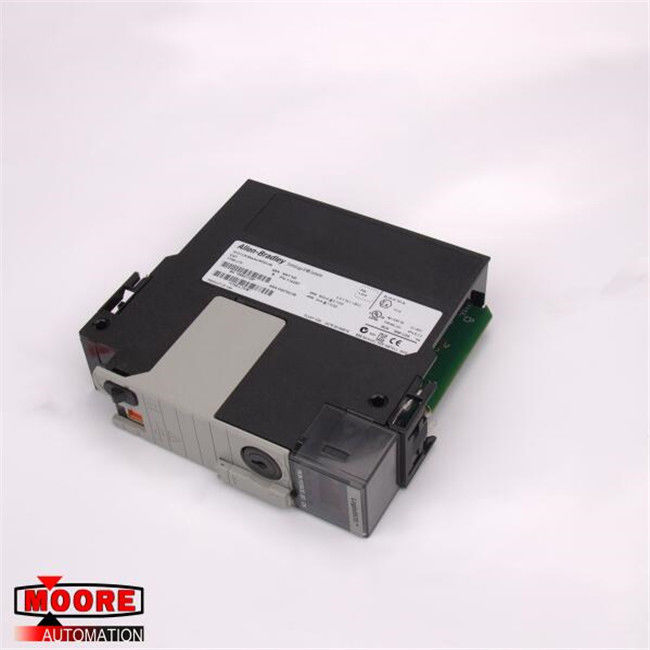

1756-L73 1756L73 AB AB ControlLogix 8 MB Controller
⇒ Click here for good price 1756-L73
| Brand/Manufacturer | AB/USA |
| Part Number |
1756-L73 |
| Alternate Part Number | 1756-L73 |
| Description | MOTOR SERVO |
| Dimennsions |
14.5X13.3X3.4cm |
| Weight | 0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-L73 is a ControlLogix 5570 controller. It features 32 tasks and each task holds up to 100 programs. The 1756-L73 controller’s communication options include EtherNet/IP, DeviceNet, ControlNet, Data Highway Plus, Remote I/O, SynchLink, and third-party network ports. These ports are for programming, configuring, firmware updates, and on-line editing. Supported by up to 500 controller connections, the 1756-L73 controller has full support for any controller redundancy with integrated motion, including SERCOS interface and analog options. Its programming languages are Relay Ladder, Structured Text, Function Block Diagram, and Sequential Function. The 1756-L73 can use up to 8 MB of user memory with 0.98 MB of Input/Output memory. In addition, it has 128,000 total and digital I/O and 4000 analog I/O at most. The required current draw at 1.2V DC is 5 mA and 800 mA current draw is required at 5.1V DC. The 1756-L73 has 2.5 W power dissipation and 8.5 BTU/hour thermal dissipation. The isolation voltage is continuous at 30 V with basic insulation, tested at 500V AC for 60 seconds. Using a USB 2.0, it can reach up to 12 Mbps at its full speed. Approximately, it only weighs 0.25 kg with a 1-slot width and an open-style enclosure.
The module is chassis-based at any slot for the 1756 chassis series. The 1756-L73 controller’s power requirement is a standard 1756 power supply. Its wiring category is 3 – on USB ports. The 1756-L73 controller has an operating temperature of 0-60 °C and its non-operating temperature is -40-85 °C. The maximum surrounding temperature that it can operate at is 60°C with 5 – 95% non-condensing relative humidity. Its operating vibration is 10 – 500 Hz is 2 g and its operating shock is 30 g operating shock while its non-operating shock is 50 g. It can reach 45 g when an SD card was installed.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
