| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1786-RPA |

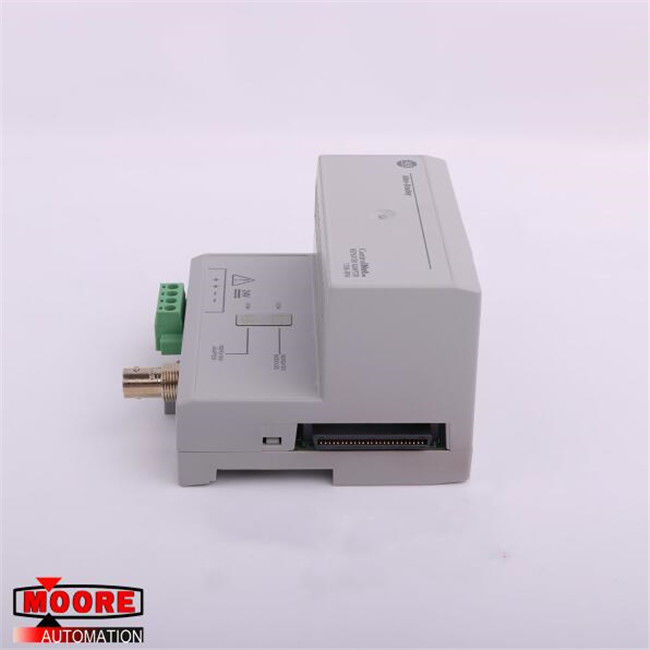

1786-RPA 1786RPA AB AB ControlNet Modular Repeater Adaptor
⇒ Click here for good price 1786-RPA
| Brand/Manufacturer | AB/USA |
| Part Number |
1786-RPA |
| Alternate Part Number | 1786-RPA |
| Description | MOTOR SERVO |
| Dimennsions |
10x9.9x7cm |
| Weight | 0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1786-RPAB is a ControlNet modular repeater adapter. It works with an RG6 copper coax fiber type and it is capable of connecting multiple modules. To be specific, the 1786-RPAB repeater adapter can connect to up to 2 modules when it is used with either the 1786-RPFRXL/B or with the 1786-RPFRL modules and it can connect to up to 4 modules with the 1786-RPFS, 1786-RPCD, and the 1786-RPFM repeater modules. The 1786-RPAB repeater adapter requires 24 Volt DC input power and at 5 Volts DC, it can provide a maximum of 1.6 A of backplane output current. The AB 1786-RPAB repeater adapter serves different functions, such as extending the network’s length, performing network media conversions from coaxial or copper media to fiber media, as well as the opposite way from fiber media to coaxial or copper media, providing power to the repeater modules, and for the creation of a ring, star, or point-to-point topology.
Both the repeater adapters and repeater modules are equipped with 2 status indicators, which indicates if they are both powered up or if a fault has been detected (these indicators are also known as ready/fault indicators), and which indicate if errors are present in the data that is being received at the adapters and modules. The entire 1786-RPAB repeater adapter has an approximate measurement of 4 x 4 x 3 inches, or 10 x 10 x 8 centimeters, and it weighs around 7 ounces or 0.20 kilograms. This Series B repeater adapter is also known as model number 1786-RPA/B.
