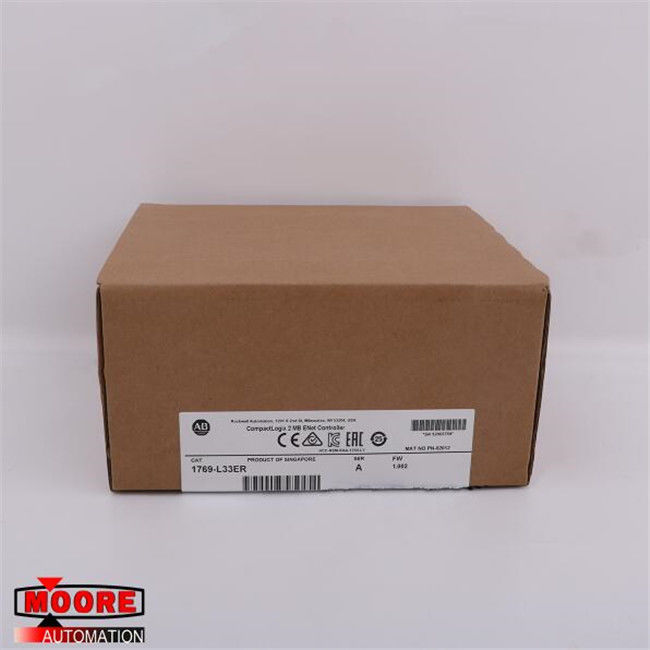

1769-L33ER 1769L33ER AB AB CompactLogix 5370 Controller
⇒ Click here for good price 1769-L33ER
Brand/Manufacturer | AB/USA |
Part Number |
1769-L33ER |
Alternate Part Number | 1769-L33ER |
Description | MOTOR SERVO |
Dimennsions |
19x17x9.5cm |
Weight | 0.5kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1769-L33ER CompactLogix 5370 controller by AB is a compact Logix controller. The 1769-L33ER can communicate with the controller or other devices through the Ethernet port. This controller has built-in user memory of 2 MB. It is packaged with an optional non-volatile memory card which amounts to 1GB, thay may be expanded up to 2GB. The 1769-L33ER can support Sixteen (16) I/O modules with a maximum of Three (3) I/O banks connected by appropriate expansion cables.
The 1769-L33ER has a draw current of 5 Volts DC at 560 mA across 4 power supply modules and has a maximum power dissipation of 4.5 Watts. It has a 500 mA @ 5VDC backplane current draw and a maximum bus insulation 30 Volts. The 1769-L33ER can be mounted using either a DIN rail or panel mounting.
The 1769-L3ER CompactLogix controller has an average weight of 0.31 kilograms (0.68 pounds) and comes with an open-style enclosure. It is an Electronic device with an operating temperature range of a 0 to 60 degree Celsius (32 to 140 degree Fahrenheit) and a -40 to 85 degree Celsius (-40 to 185 degree Celsius) storage temperature, with a maximum relative noncondensing humidity range between 0 to 95%. This unit can be used with several different power supplies, such as the 1769-PA4, the 1769-PA2, and the 1769-PB4.
The AB 1769-L33ER belongs to the CompactLogix 5370 L3 controllers. This product series are 1769 CompactLogix controllers that is AB’s modular and cost-effective solution for medium sized applications. This controller features Logix platform capabilities and supports a degree of expansion far greater than the micro automation controller’s capabilities. The 1769-L33ER supports up to Sixteen (16) Local I/O module installation with the ability to use up to Three (3) I/O expansion banks. It is also provided with an embedded dual ethernet that act as an embedded switch and supports 10/100 mbps data rate with auto-negotiation capabilities.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
