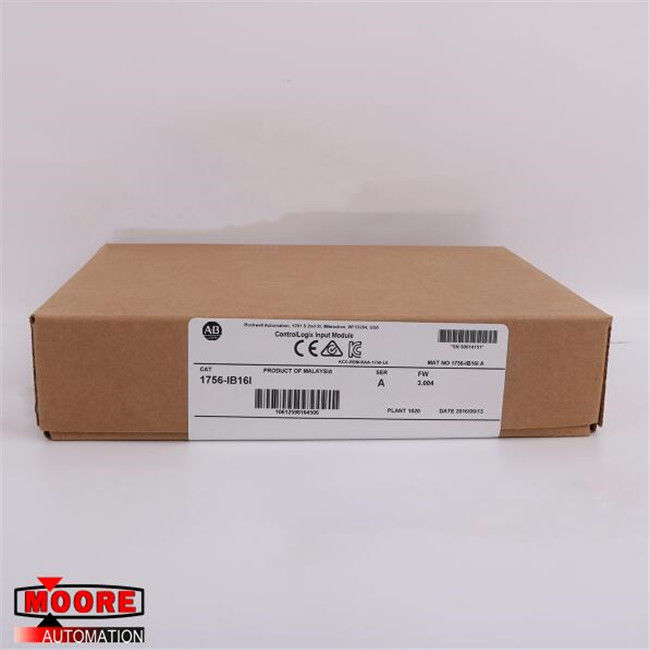

1756-IB16I 1756IB16I AB AB ControlLogix Input Module

1756-IB16I 1756IB16I AB AB ControlLogix Input Module

⇒ Click here for good price 1756-IB16I

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

he AB 1756-IB16I is a ControlLogix Digital I/O Module compatible with the 1756 ControlLogix chassis. It is a module that has 16 individually isolated inputs and requires either a 1756-TBS6H or 1756-TBCH removable terminal block housing (RTB). Using the RSLogix 5000 software, users can configure a Change of State and Input Filter Times.

The 1756-IB16I's voltage category is 12/24V DC sink/source, with an operating voltage range of 10 to 30V DC. This module has a nominal input voltage of 24V DC, a maximum power dissipation of 5 W at 60 Degrees Celsius, and a thermal dissipation of 17.05 BTU/hour. At 5.1V, it has a current draw of 100 mA and 3 mA at 24V. It also has a maximum inrush current of 250 mA peak (decaying to <37% in 22 ms, without activation). During an off-state, the maximum current is 1.5 mA and the maximum voltage is 5V. The module's current during on-state ranges from 2 mA at 10V DC to 10 mA at 30V DC. The current draw of this module at 5.1V is 100 mA and at 24V, it is 3 mA.

The input delay time of this module varies depending on its state (off to on or off to on). From 'off' to 'on', its delay time is the hardware delay of up to1 ms plus the user-selectable filter time of either 0 ms, 1 ms, or 2 ms. From 'on' to 'off', on the other hand, the delay time is the hardware delay of up to 4 ms plus the user-selectable filter time of 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms.
