| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1747-SN |

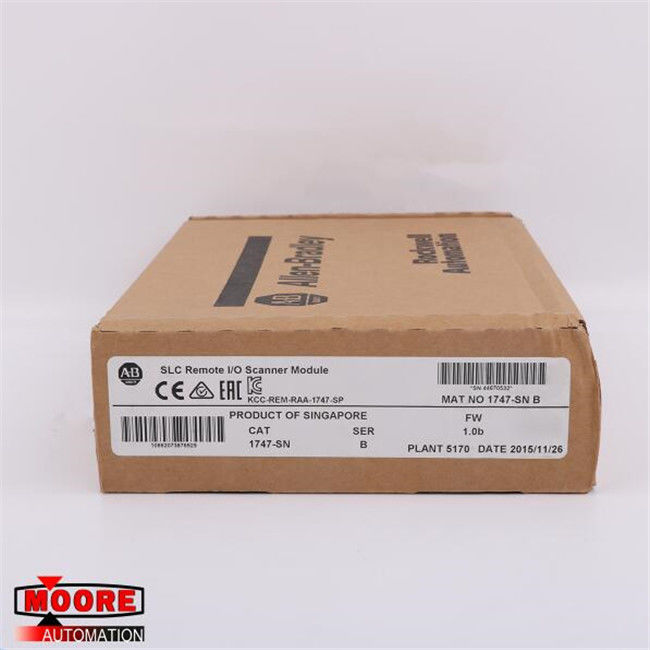

1747-SN 1747SN AB AB SLC Remote I/O Scanner Module
⇒ Click here for good price 1747-SN
| Brand/Manufacturer | AB/USA |
| Part Number |
1747-SN |
| Alternate Part Number | 1747-SN |
| Description | MOTOR SERVO |
| Dimennsions |
25x16.5x6cm |
| Weight | 0.35kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1747-SN SLC 500 Remote I/O Module by AB is a remote I/O scanner that provides standard communication between SLC processors and any remote 1746 I/O chassis and any other remotely-located compatible devices. It provides communication over a wide area and supports a remote communication cable with a length of up to 3050 meters (10,000 feet). The 1747-SN has a maximum connection capacity of up to 16 remotely-connected devices in its normal mode but it can support up to 32 devices in its complementary mode, and when operational, it has a backplane electrical rating of 600 mA at 5 Volts DC.
The 1747-SN uses the node’s extended capability to transfer information in the communication channel at a rate of 57.6 Kbaud through a cable length of 3048 meters (10,000 feet) and at a rate of 230.4 Kbaud through a maximum distance of 762 meters (2500 feet) cable using an 82-Ohm terminating resistor. Information is also transmitted with the node’s non-extended capability at rates of 57.6 Kbaud and 230.4 Kbaud through a cable distance of 3048 meters (10,000 feet) and 762 meters (2500 feet) using an 82-Ohm 1/2 Watt terminating resistor. It has four selectable baud rates and it uses 2 DIP switches (Switch 1 and 2) for the selection of baud rates. The 1747-SN’s operating temperature range is between 0 and 60 degrees Celsius at 5 to 95% humidity without condensation and it has a non-operational temperature between -40 degrees Celsius and 85 degrees Celsius.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
